Backing Plate: Service and Repair

REMOVAL PROCEDURE





1. Raise and support the vehicle.
2. Remove the brake drum. Mark the relationship of the drum to the axle flange in order to ensure proper balance upon reassembly.
3. Remove the brake shoes.
4. Remove the wheel cylinder.
5. Remove the park brake cable from the backing plate.

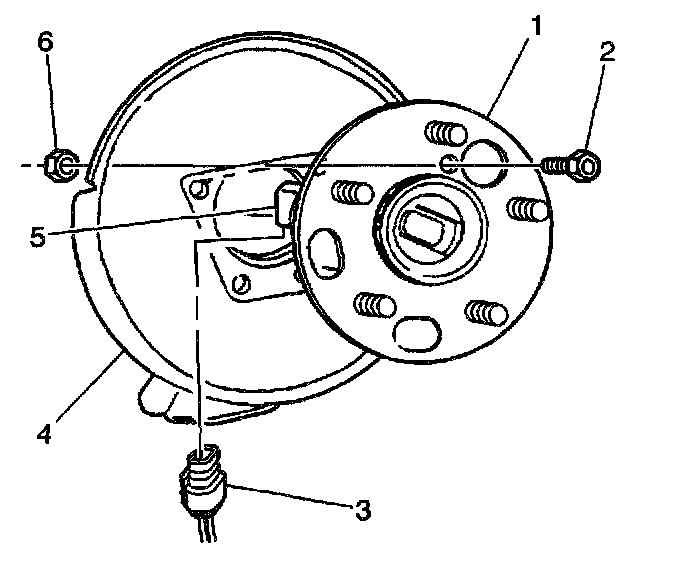

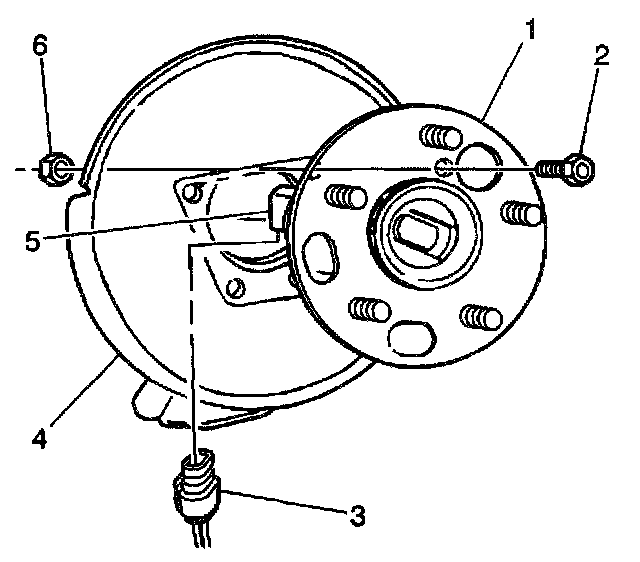

6. Remove the hub and bearing assembly (1).
7. Remove the backing plate (4).

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.





1. Install the wheel cylinder to the backing plate.
2. Install the backing plate (4) to the axle assembly.
3. Install the hub and bearing assembly (1).
4. Install the park brake cable to the backing plate.

NOTICE: Brake fluid will damage painted surfaces. Shop cloths and clean containers should be used to prevent spillage of brake fluid.

5. Install the brake shoes.
6. Adjust the rear brake assembly.
7. Bleed the brake system.
8. Lower the vehicle.
