Trim Plate Replacement - Console

REMOVAL PROCEDURE

1. Remove the gear shift lever handle. Pull retainer pin and pull upward on the handle.

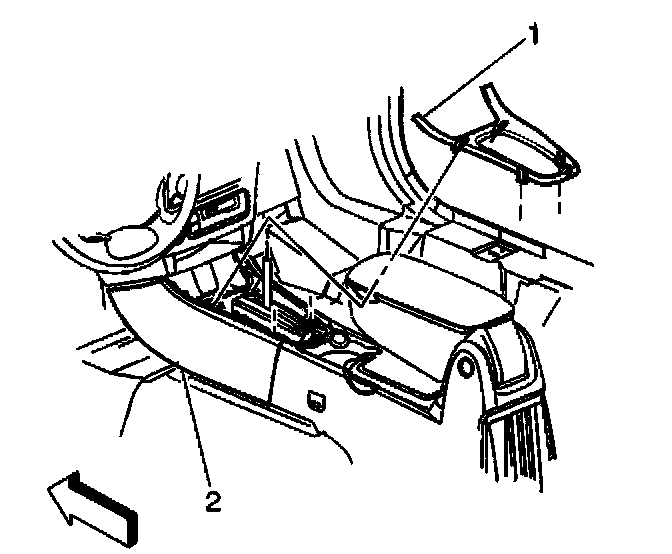

2. Gently pry upward on the trim plate in order to disengage the retainers from the console (2).

INSTALLATION PROCEDURE

1. Align the retainers. Press the plate (1) into place.
2. Install the gear shift lever handle. Insert retaining pin.
