Console Replacement

REMOVAL PROCEDURE

1. Remove the front seats.
2. Fold the console compartment up.
3. Remove the console trim plate.

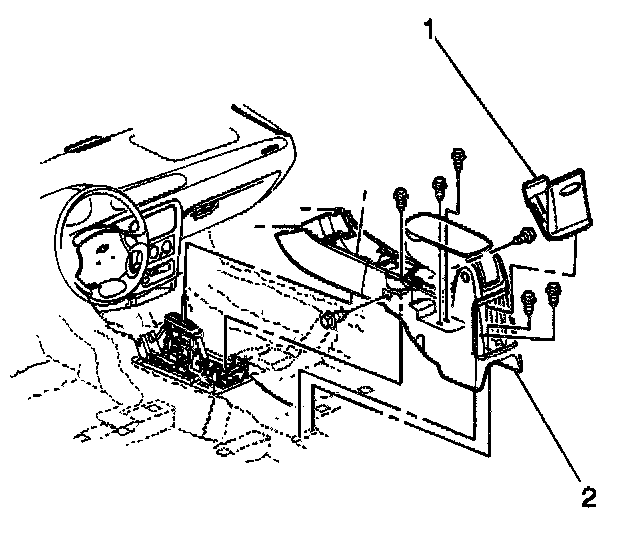

4. Remove the rear cupholder (1).
5. Remove the screws.
6. Remove the console (2).

INSTALLATION PROCEDURE

1. Install the console (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the rear cupholder (1).
4. Install the console trim plate.
5. Install the console compartment.
6. Install the front seats.
