U2004

DTC U2004 SPI Data - Out Low:

CIRCUIT DESCRIPTION
This is a trouble code (both current and history) that indicates the Body Control Module (BCM) has sensed a short to ground/open condition on the instrument cluster Serial Peripheral Interface (SPI) data out line to the body control module.

CONDITIONS FOR SETTING THE DTC
All of the following conditions must be met:
^ Ignition 0 is active.
^ The serial data line from the BCM to the instrument panel cluster (IPC) is shorted to ground or open for 5 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ Stores DTC U2004 in the body control module (BCM) memory
^ The instrument cluster illuminates the following indicators:
- THEFT SYSTEM
- ABS
- SERVICE VEHICLE SOON
- The PRNDL indicator is blank.
- The temperature gauges read zero.

CONDITIONS FOR CLEARING THE DTC
^ The body control module (BCM) goes to sleep and reinitializes with the malfunction cleared.
^ All the body control module (BCM) history codes will be cleared after 100 ignition cycles (from OFF to ON) with no current codes active during the 100 ignition cycles.
^ Use the scan tool.

DIAGNOSTIC AIDS
^ Diagnose DTC U2000, U2006 and U2007 before diagnosing DTC U2004.
^ With the ignition switch in the ON position, test for voltage transitions on the SPI data line.
^ When the diagnostics direct you to take electrical measurements at the wiring harness junction blocks, refer to Diagrams.
^ If the DTC is a history DTC, the problem may be intermittent. Perform the above tests while wiggling the wiring and connectors. This may often cause the malfunction to appear.

TEST DESCRIPTION

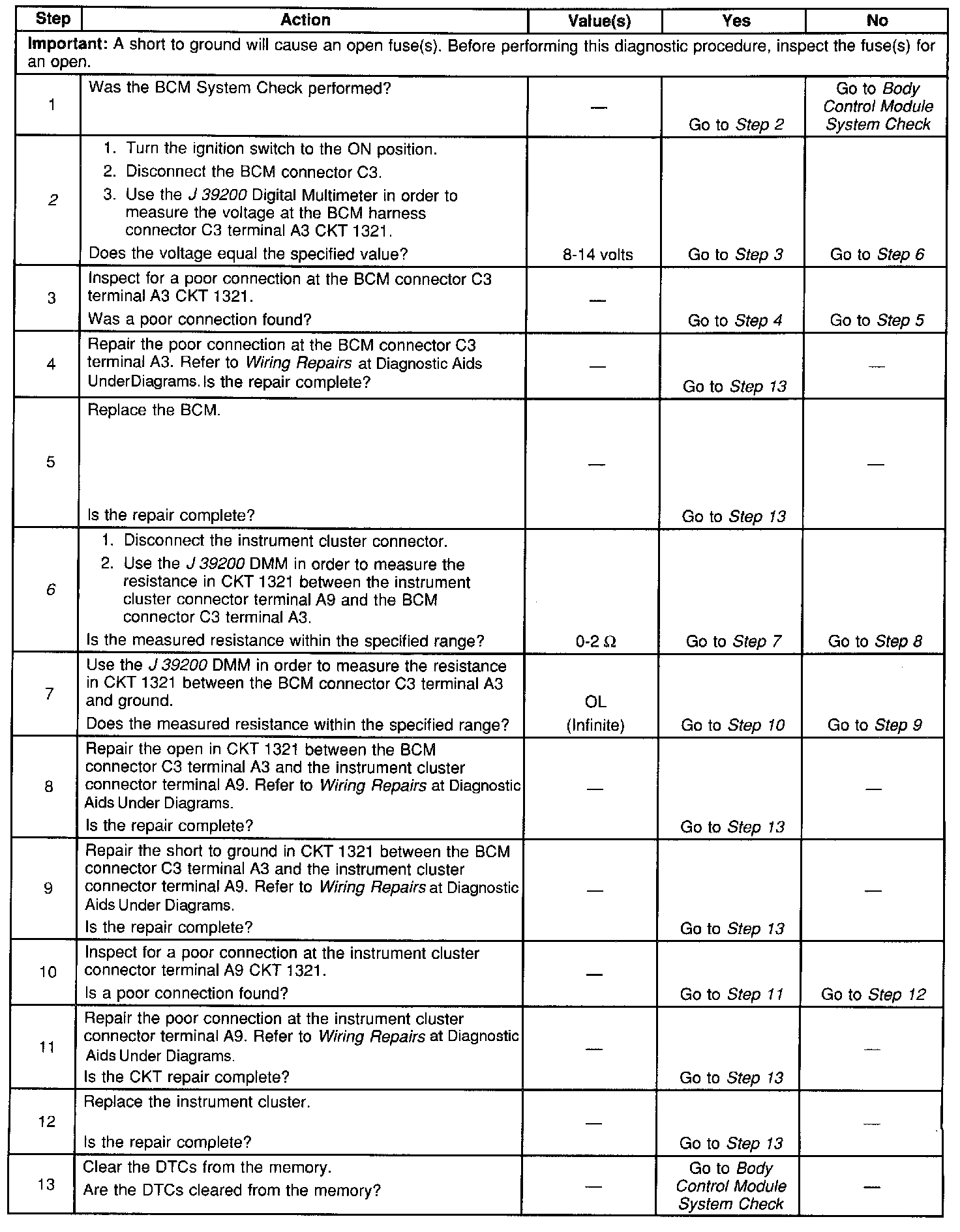

The numbers below refer to the numbers on the diagnostic table.
2. This step determines if the BCM is malfunctioning.
6. This step determines if there is an open in CKT 1321 between the BCM and the instrument cluster.
