P1639

Circuit Description
The PCM uses the 5 Volt Reference B circuit as a sensor feed to the A/C Refrigerant Pressure Sensor. The PCM monitors the voltage on the 5 Volt Reference B circuit. If the voltage is out of tolerance, the PCM will set DTC P1639.

Conditions for Running the DTC
The ignition is on.

Conditions for Setting the DTC
^ The PCM detects a voltage out of tolerance condition on the 5 Volt Reference B circuit.
^ Above condition for longer than 10 seconds.

Action Taken When the DTC Sets
^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM will store conditions which were present when the DTC set as Failure Records data only. This information will not be stored as Freeze Frame data.

Conditions for Clearing the MIL/DTC
^ A history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using the scan tool Clear Info function.

Diagnostic Aids
Check for the following conditions:
^ Poor connection at PCM. Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
^ Damaged harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the A/C pressure display on the scan tool while moving connectors and wiring harnesses related to the Fuel Tank pressure sensor.
^ Inspect PCM and engine grounds for being secure and clean. Refer to Power and Grounding Component Views in Diagrams.

Refer to Testing for Continuity, Intermittents and Poor Connections Diagnosis. Symptom Related Diagnostic Procedures

Reviewing the Fail Records vehicle mileage since the diagnostic test last failed may help determine how often the condition that caused the DTC to be set occurs. This may assist in diagnosing the condition.

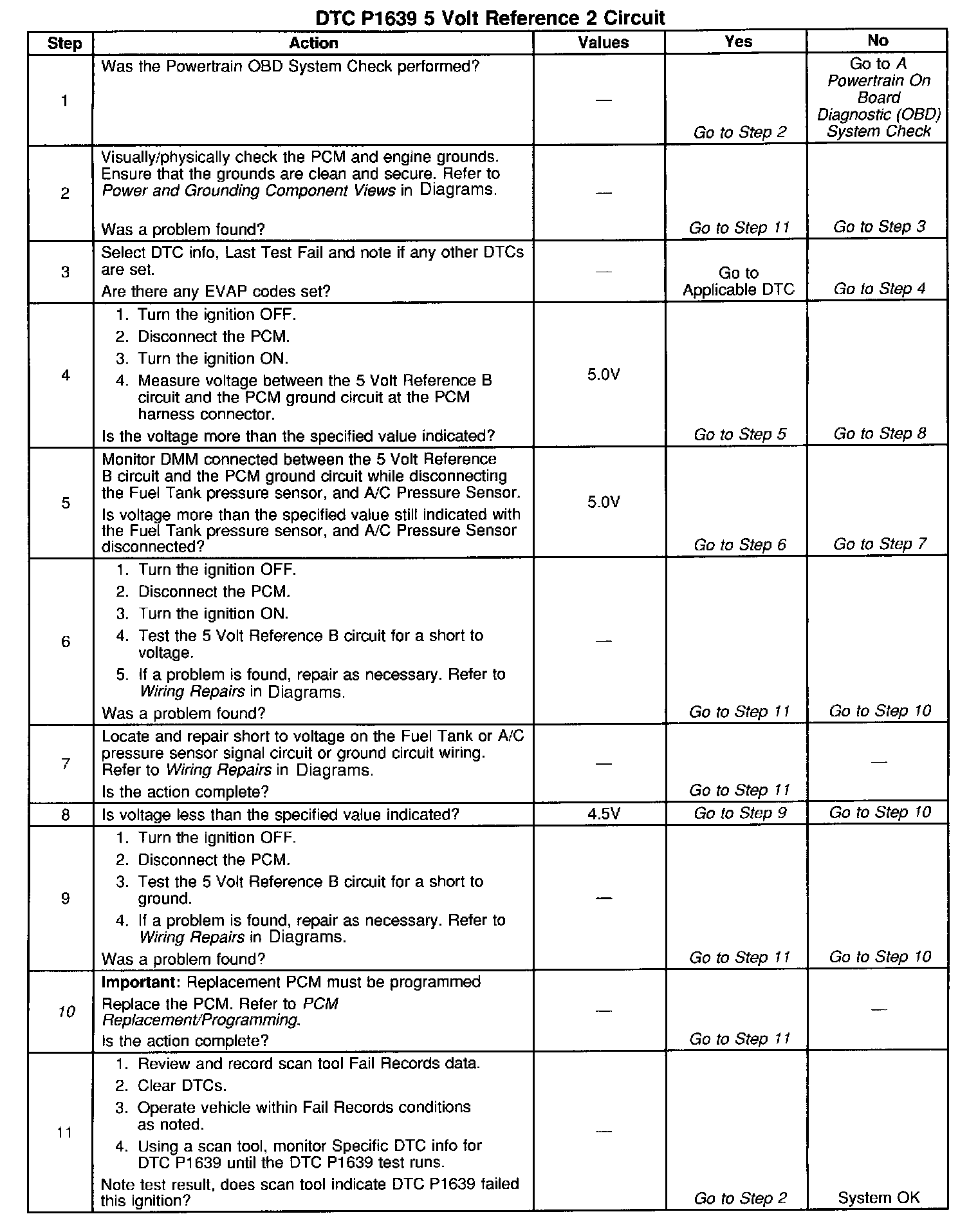

Test Description
The numbers below refer to the step numbers on the diagnostic table:
10. This vehicle is equipped with a PCM which utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is being replaced, the new PCM must be programmed.
