Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Fluid Passages >> Lower Control Valve Body Fluid Passages

Lower Control Valve Body Fluid Passages

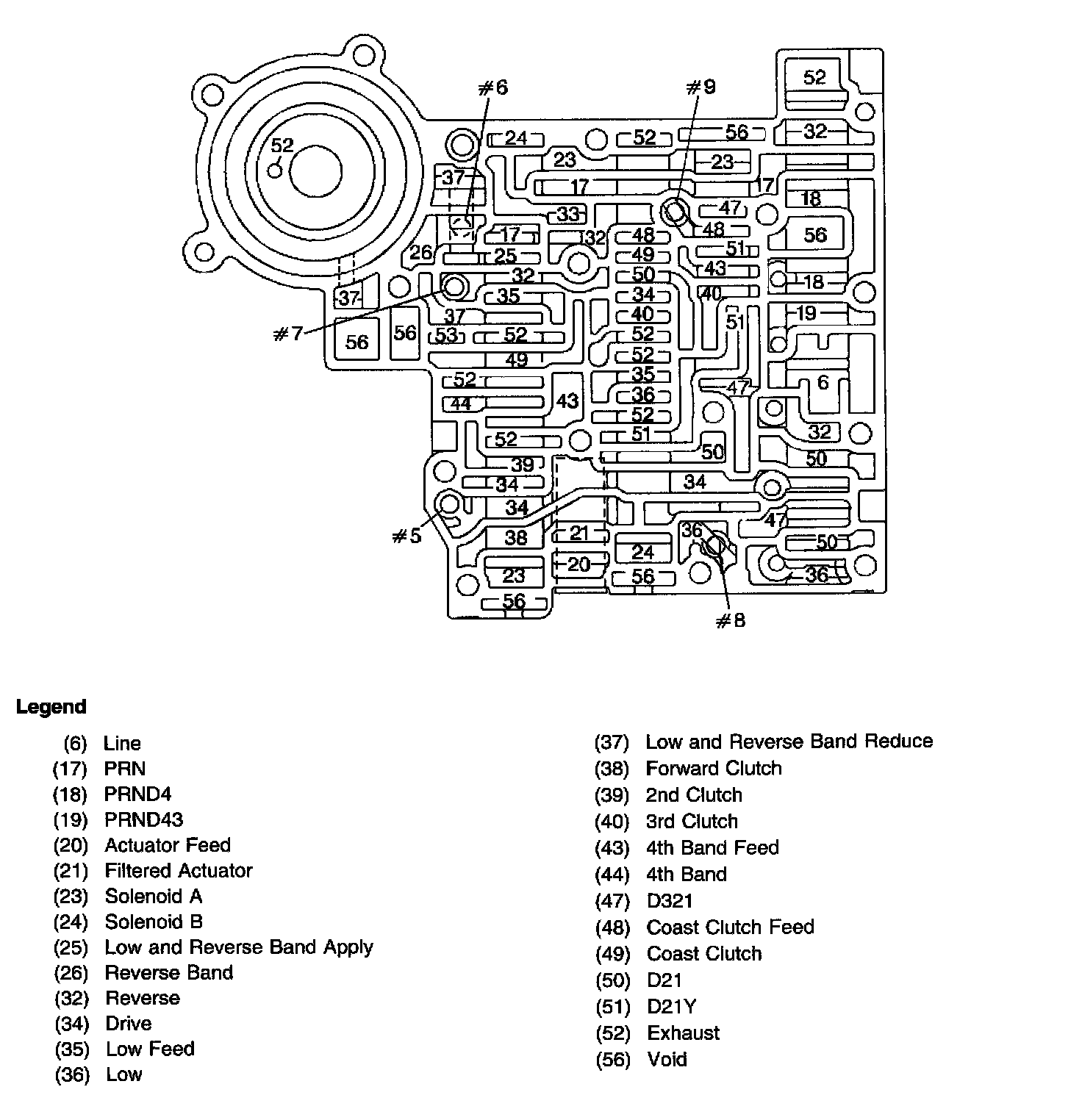

Lower Control Valve Body Fluid Passages (lower Channel Plate Side):
