Home
>>
Oldsmobile
>>
1999
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>

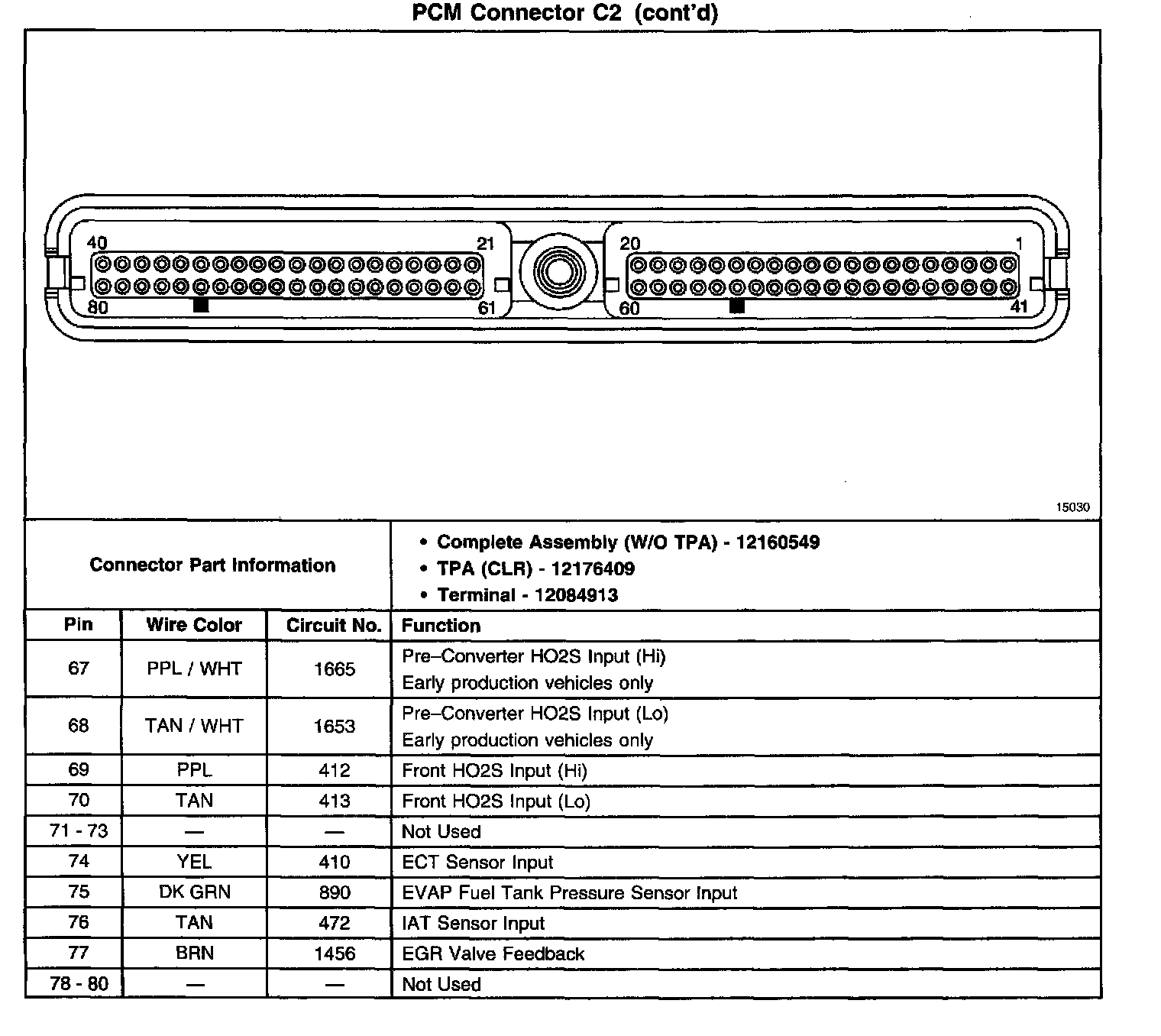

Connector Views
>>
C2
>>
Pin 67 - 80
Pin 67 - 80
