Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Interior Lamp Circuits
Interior Lamp Circuits

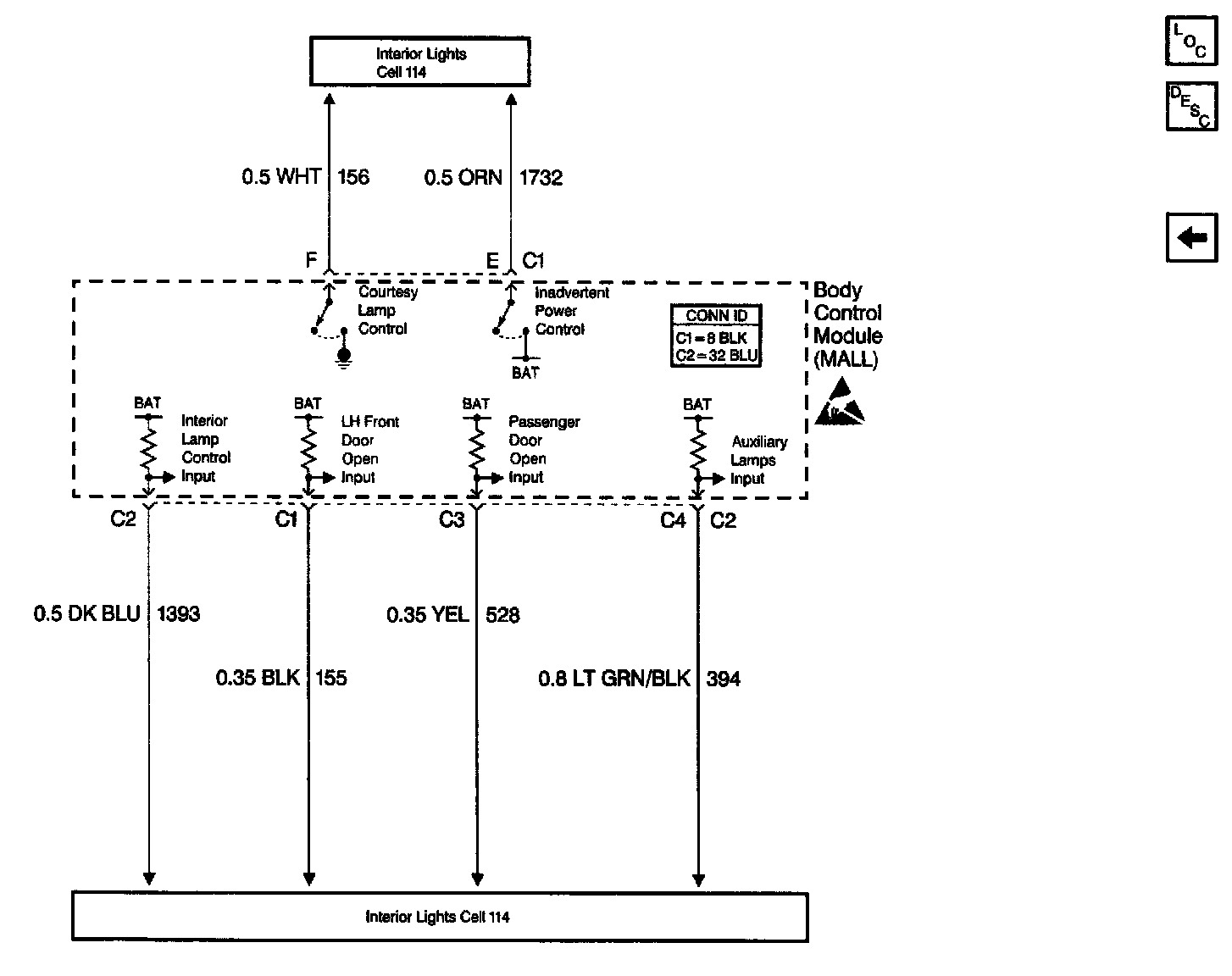

Body Control Module Schematics: Interior Lamp Circuits:
