Body Control Module
>>
Diagrams
>>
Connector Views
>>

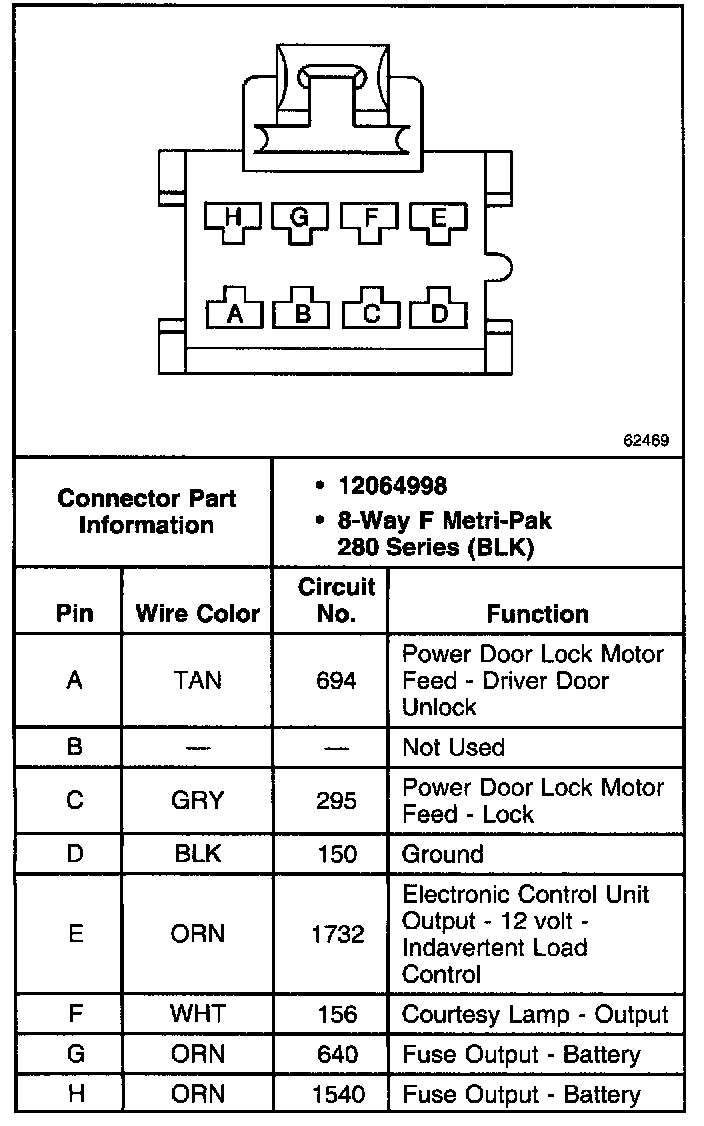

Body Control Module (BCM) C1
Body Control Module (BCM) C1
Body Control Module (MALL) C1:
