Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

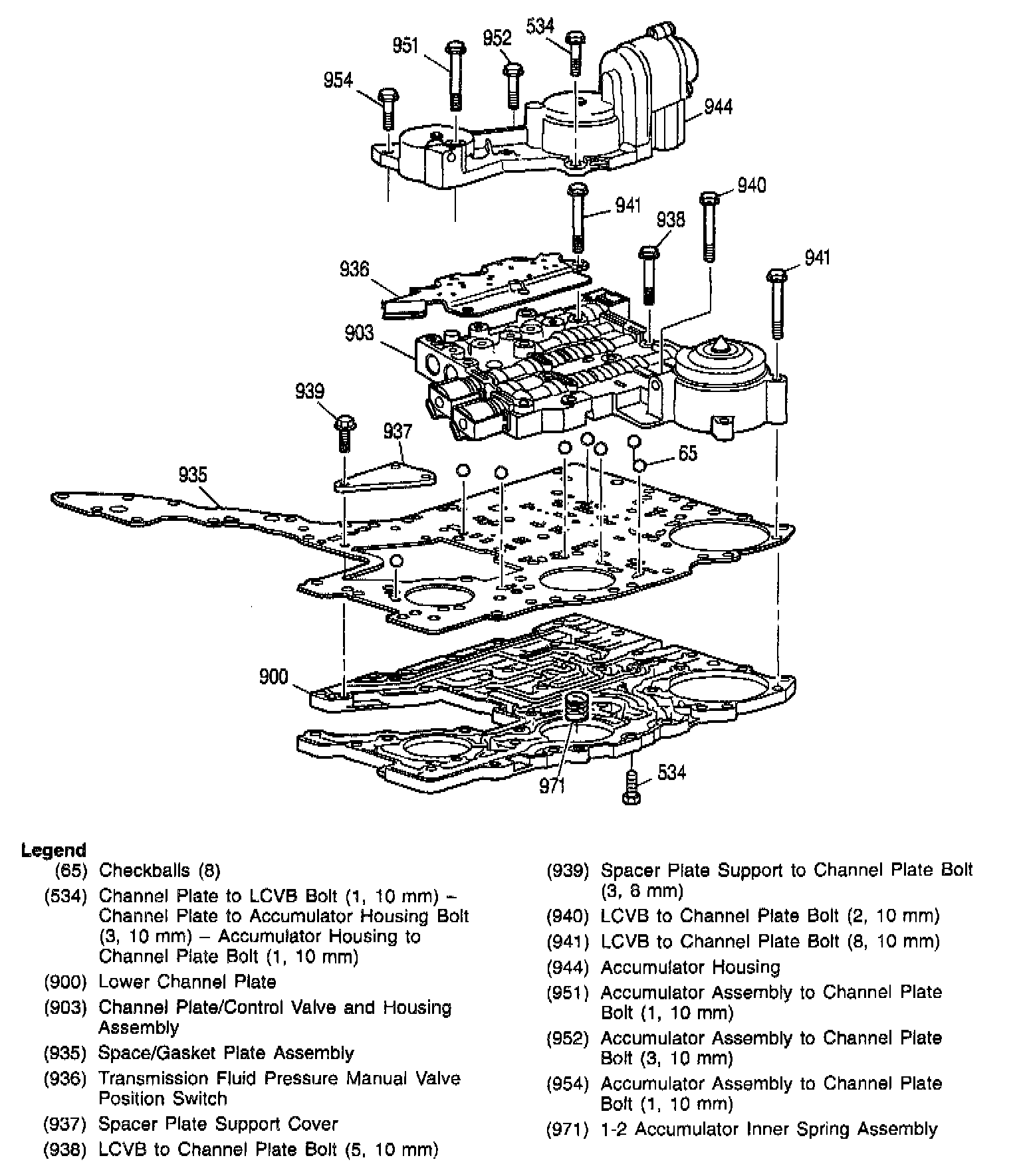

Lower Channel Plate, Cntrl Valve Bdy and Accm. Housing Assembly
Lower Channel Plate, Cntrl Valve Bdy and Accm. Housing Assembly
