Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Radio/Audio System Schematics >> Remote Compact Disc Player (W/US1)

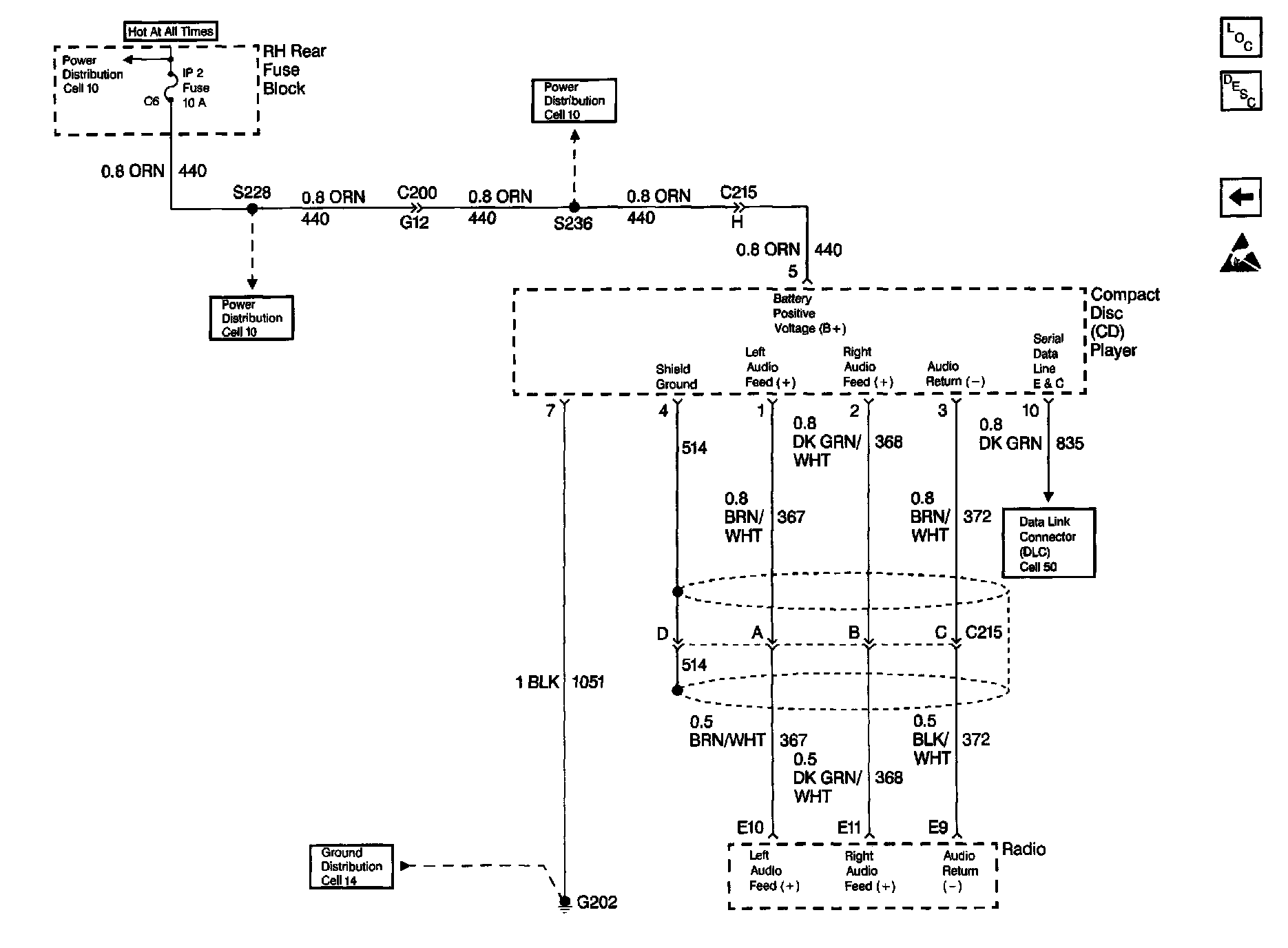

Remote Compact Disc Player (W/US1)

Radio/Audio System Schematics: Remote Compact Disc Player (W/US1):
