Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Door Courtesy Lamp, LH/RH Rear

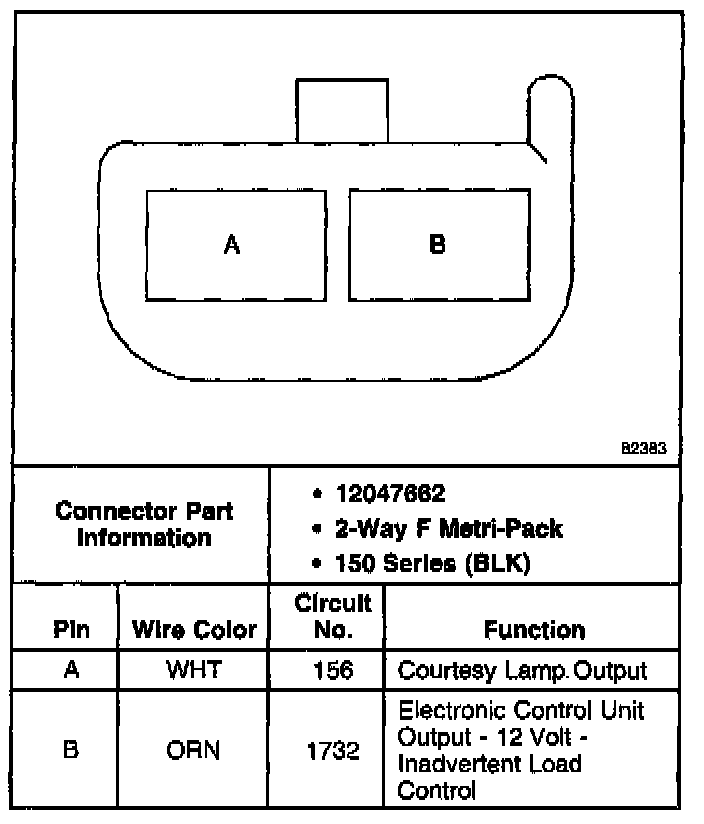

Door Courtesy Lamp, LH/RH Rear

LH/RH Rear Door Courtesy Lamp:
