Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagnostic Connector - Seat >> Diagrams

Diagnostic Connector - Seat: Diagrams

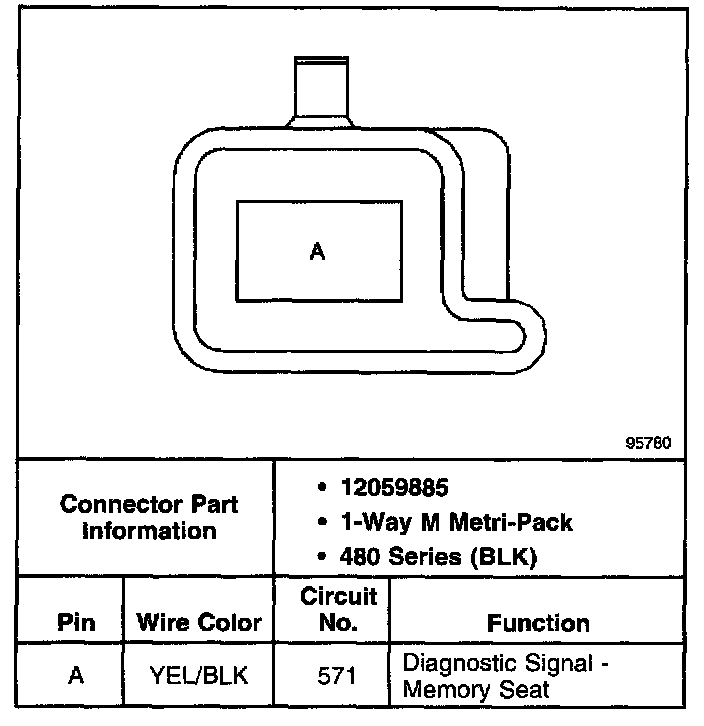

Memory Seat/Mirror Diagnostic Connector:
