Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Powertrain Control Module (PCM)

Powertrain Control Module (PCM)

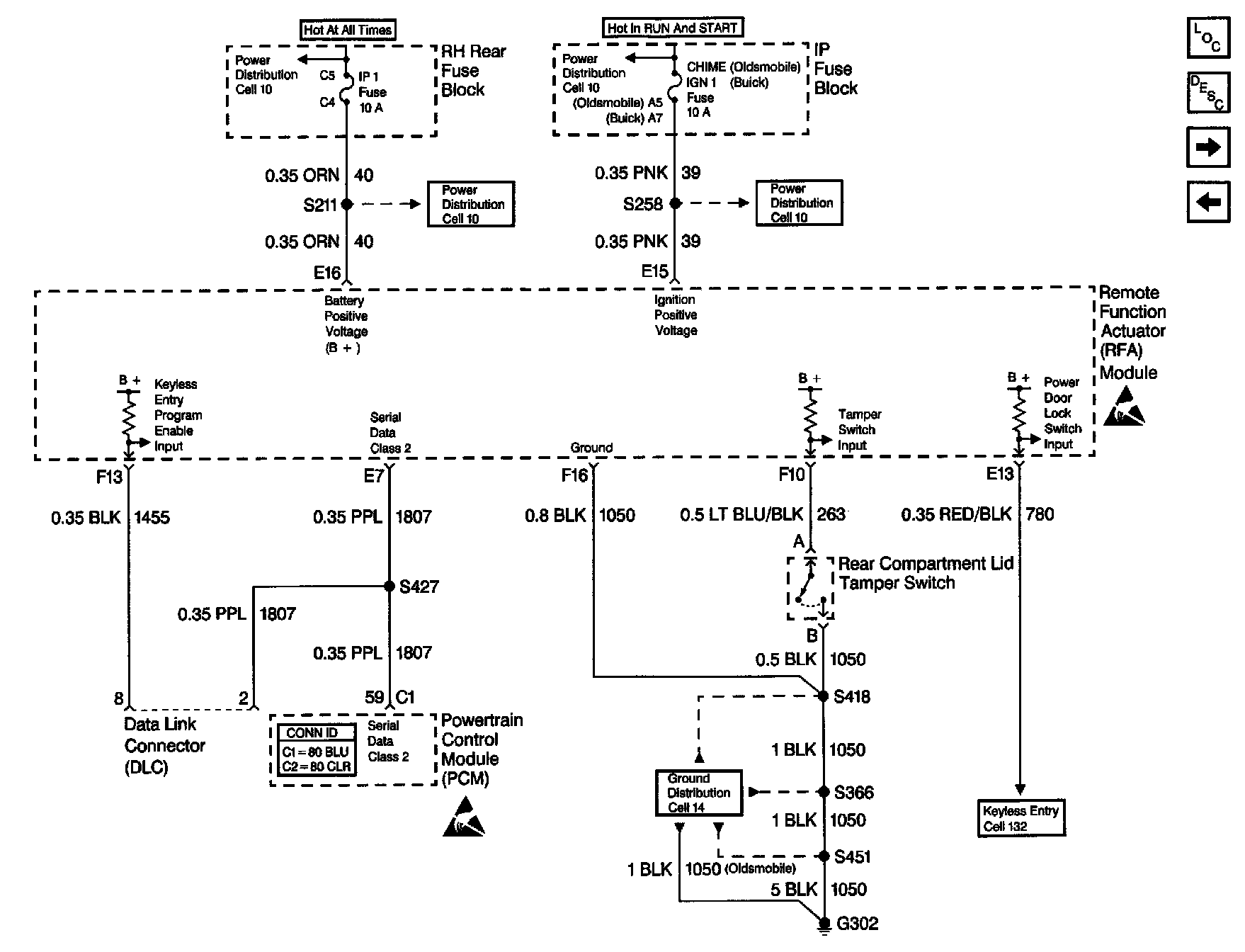

Theft Deterrent System Schematics: Powertrain Control Module (PCM):
