Wiper Motor Replacement

REMOVAL PROCEDURE




TOOLS REQUIRED
J 39232 Wiper Transmission Separator

1. Remove the wiper arm assemblies from the wiper transmission assembly drive shaft.
2. Remove the air inlet grille panel assembly from the vehicle.
3. Remove the connector from the wiper motor assembly.
4. Remove 3 screws and the wiper drive system module from the vehicle.




5. Remove the wiper transmission assembly from the wiper motor crank arm using J 39232.

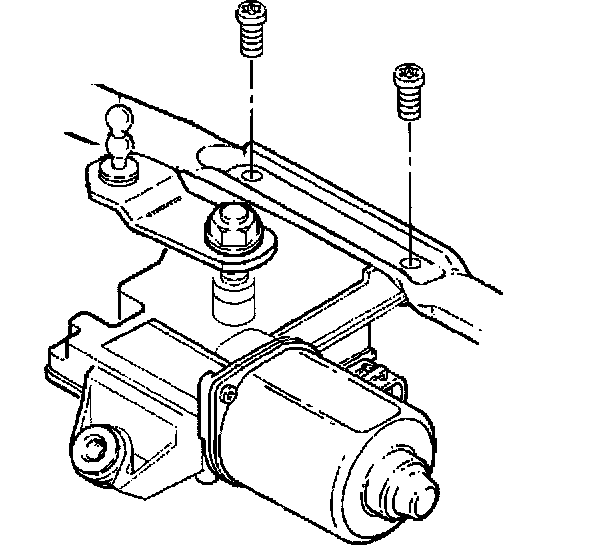

6. Remove two screws and the wiper motor assembly from the tube frame.

INSTALLATION PROCEDURE




TOOLS REQUIRED
J 39529 Wiper Transmission Installer

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the wiper motor assembly onto the tube frame with 2 screws.

Tighten
Tighten the screws to 10 N.m (88 lb in).




2. Install the wiper transmission assembly onto the wiper motor crank arm using the J 39529.




3. Install the wiper drive system module onto the vehicle with 3 screws.

Tighten
Tighten the screws to 10 N.m (88 lb in).

4. Install the connector onto the wiper motor assembly.
5. Install the air inlet grille panel.
6. Install the wiper arm assemblies onto the wiper transmission assembly drive shaft.
7. Operate the wipers and check for proper operation.
