Washer Solvent Container Replacement

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the left splash shield.
3. Remove the air intake duct.
4. Remove the connector from the washer pump.
5. Remove the hose from the washer pump.
6. Remove the connector from the solvent level sensor.
7. Remove the EBCM.

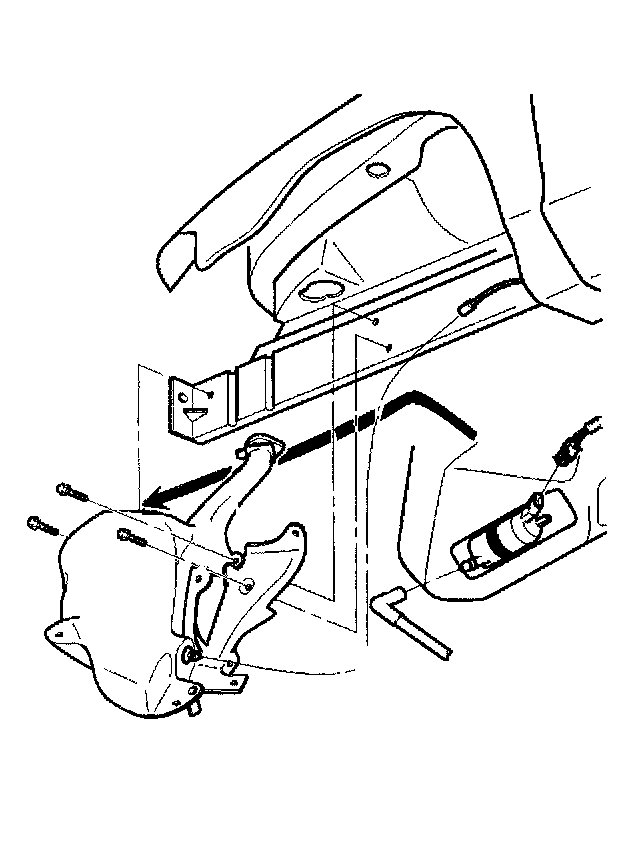

8. Remove 3 screws and the washer solvent container assembly from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the washer solvent container assembly onto the vehicle with 3 screws.

Tighten
Tighten the screws to 6 N.m (53 lb in).

2. Install the EBCM.
3. Connect the connector to the solvent level sensor.
4. Connect the hose to the washer pump.
5. Connect the connector to the washer pump.
6. Install the air intake duct.
7. Install the left splash shield.
8. Lower the vehicle.
