Flywheel to Torque Converter Bolt Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the starter.
3. Mark the relationship of the converter to the flywheel.

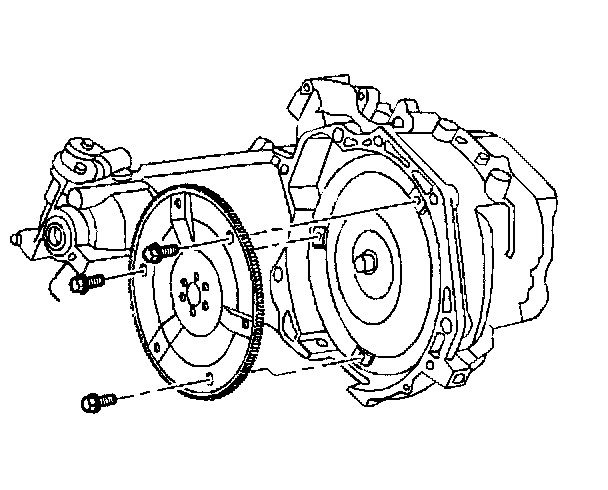

4. Remove the 3 bolts that attach the converter to the flywheel.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the bolts that attach the converter to the flywheel.
^ Tighten all of the bolts to 62 Nm (46 ft. lbs.). Re-torque the first bolt after all three have been tightened.
2. Install the converter cover bolts.
^ Tighten the converter cover bolts to 13 Nm (115 inch lbs.).
3. Install the starter.
4. Lower the vehicle.
