Transmission Mount Replacement-Rear

Removal Procedure
1. Remove the front suspension support.

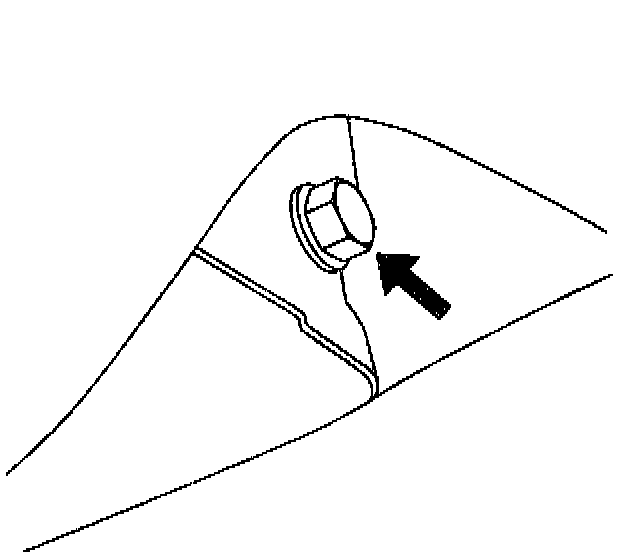

2. Remove the rear transmission mount thru bolt.
3. Remove the mount bolt.

Installation Procedure
1. Position and install the mount.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the thru bolt.
^ Tighten the thru bolt to 120 Nm (89 ft. lbs.).
3. Install the suspension support.
