Trailing Arm: Service and Repair

REMOVAL PROCEDURE
1. Raise and support the vehicle.

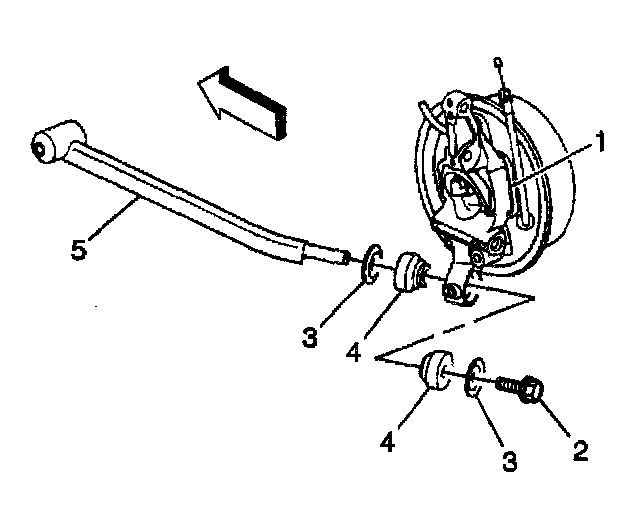

2. Remove the trailing arm-to-knuckle bolt (2), the washer (3) and the bushing (4).

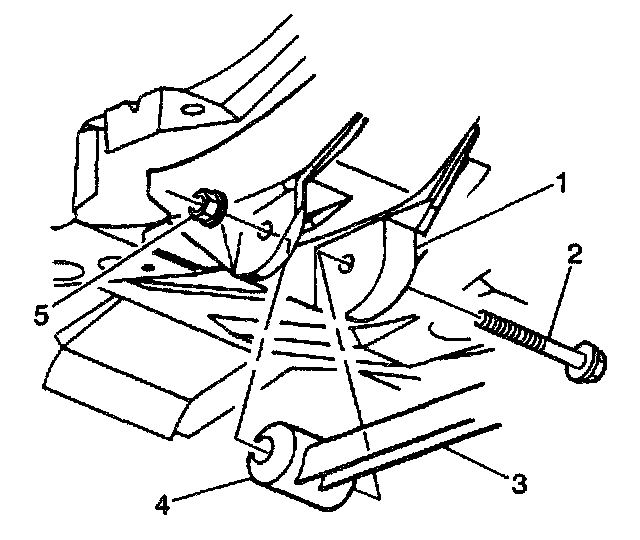

3. Remove the trailing arm to body bolt (2).
4. Remove the trailing arm (3) from the body (1).

INSTALLATION PROCEDURE





1. Install the trailing arm-to-knuckle bolt (2), the washer (3), and the bushing (4). Hand tighten the nut.





2. Connect the trailing arm (3) to the body (1) and install the bolt (2).
^ Tighten the trailing arm to body bolt to 65 Nm (48 ft. lbs.) plus a 120 degree rotation.
^ Tighten the knuckle bolt to 69 Nm (51 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Lower the vehicle.
