Front

REMOVAL PROCEDURE
1. Raise and support the vehicle, allowing the front suspension to hang free.
2. Remove the front tire and wheel assemblies.
3. Remove the stabilizer shaft links.





4. Remove the tie rods (3) from the steering knuckles (6).

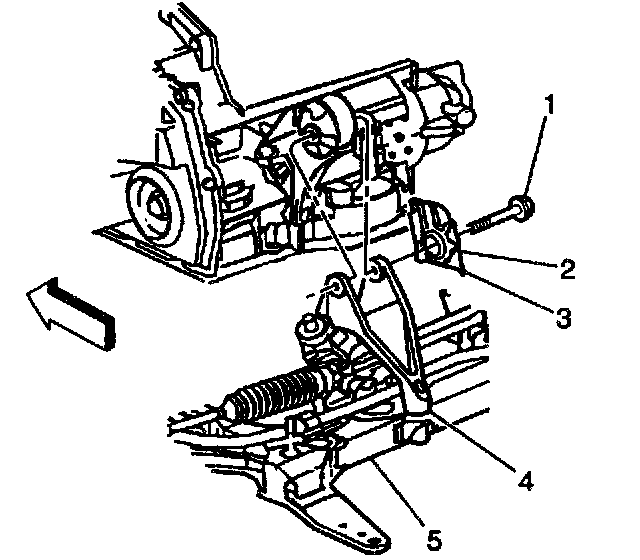

5. Remove the bolt from the rear transmission mount (4).
6. Remove the power steering line bracket from the suspension crossmember.

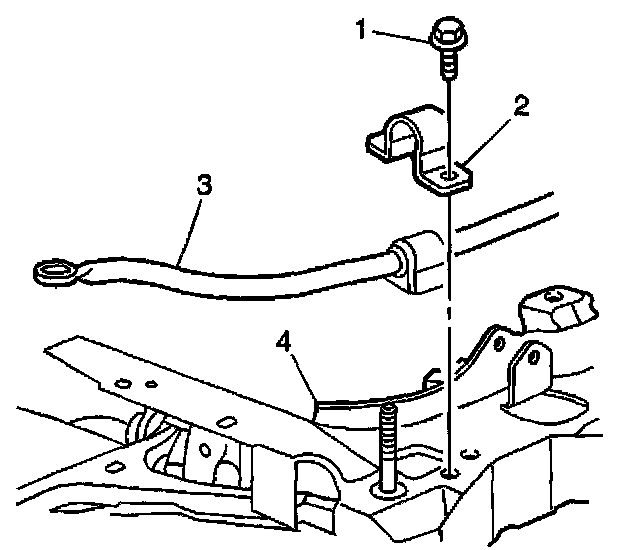

7. Remove the bolts (1) from the clamps (2) attaching the stabilizer shaft (3) to the crossmember (4).

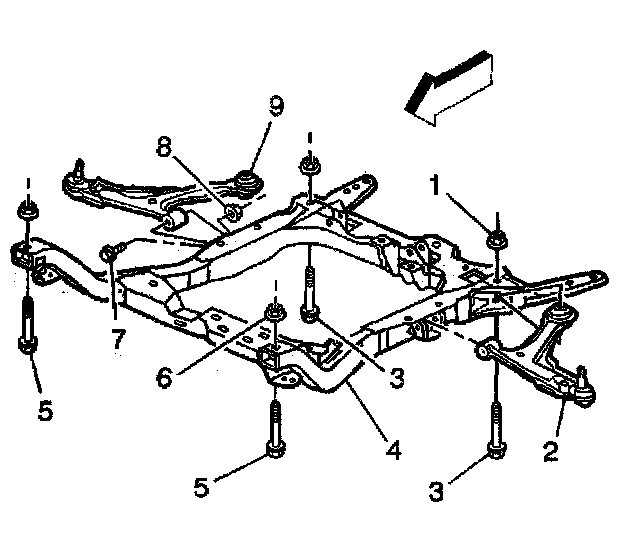

8. Support the rear of the crossmember (4) with an adjustable jack stand.
9. Remove the rear bolts (3) from the crossmember (4).
10. Loosen the front bolts (5) on the crossmember (4).
11. Lower the crossmember (4) three inches by adjusting the jack stands down.

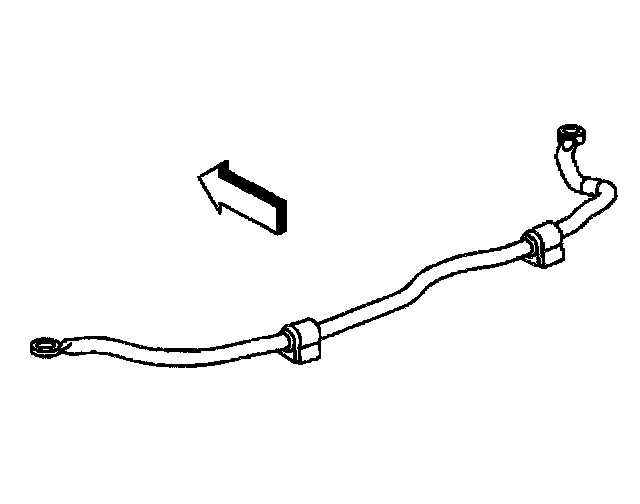

12. Remove the stabilizer shaft from the vehicle.

INSTALLATION PROCEDURE





1. Install the stabilizer shaft to the vehicle.

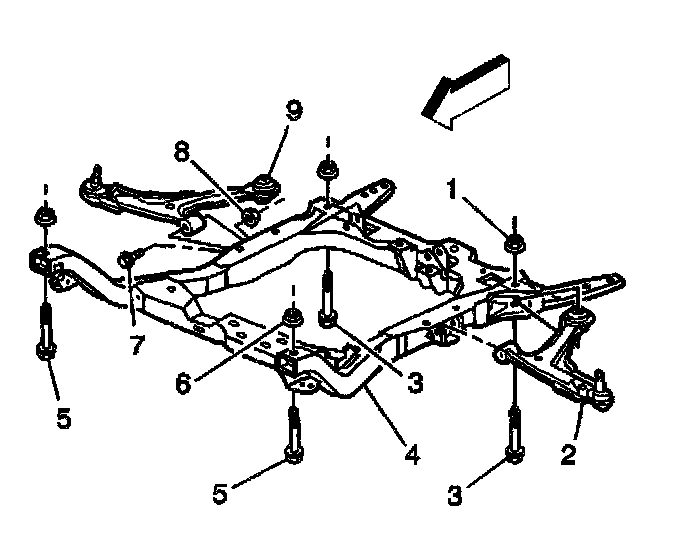

2. Install the rear bolts (3) to the crossmember (4) in the following order:
2.1. Tighten the left rear bolt to 110 Nm (71 ft. lbs.).
2.2. Tighten the right rear bolt to 110 Nm (71 ft. lbs.).
2.3. Tighten the left front bolt to 110 Nm (71 ft. lbs.).
2.4. Tighten the right front bolt to 110 Nm (71 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

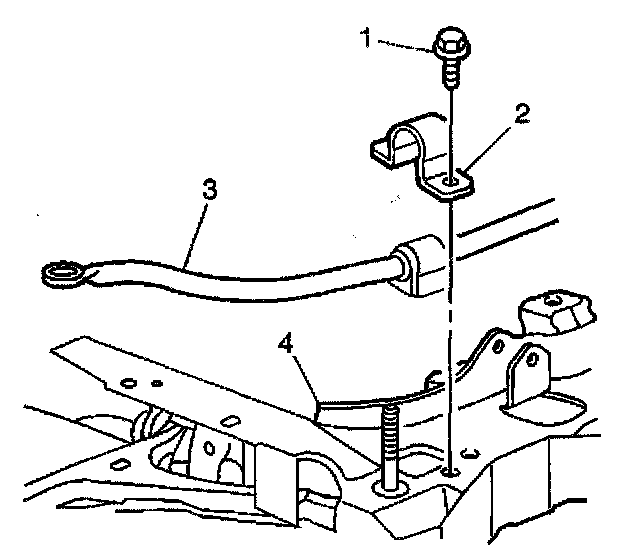

3. Install the clamps (2) and the bolts (1) to the stabilizer shaft (3).
Tighten the bolts to 66 Nm (49 ft. lbs.).
4. Install the power steering line bracket to the suspension crossmember.

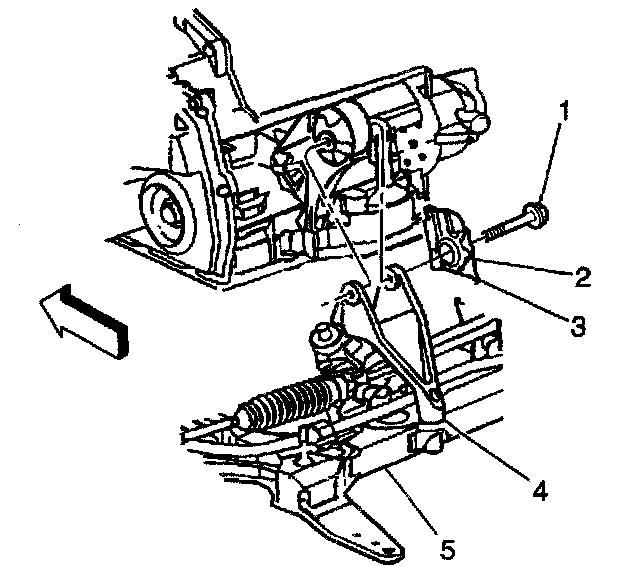

5. Install the bolt (1) to the rear transmission mount (4).
Tighten the bolt to 120 Nm (89 ft. lbs.).
6. Install the tie rods (3) to the steering knuckles (6).
7. Install the stabilizer shaft links.
8. Install the tire and wheel assemblies.
9. Lower the vehicle.
