Installation Procedure

Installation Procedure

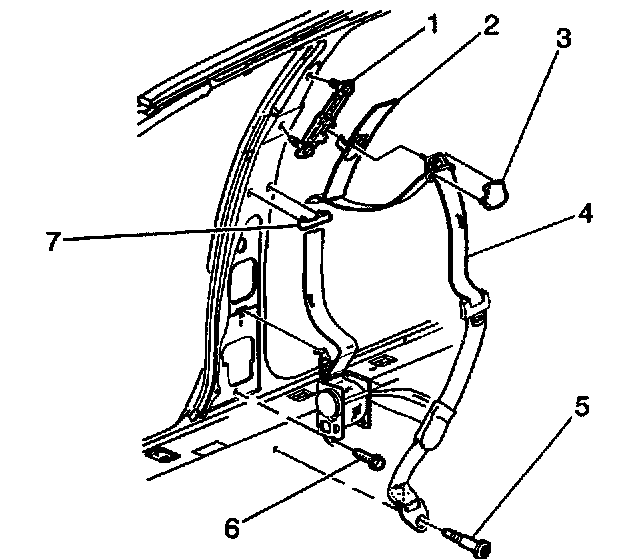

1. Install the front seat shoulder belt guide track (1).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front seat shoulder belt guide track bolts.

Tighten
Tighten the front seat shoulder belt guide track bolts to 28 N.m (21 lb ft).

3. Install the front seat shoulder belt guide track cover (2).
4. Install the front seat retractor side belt bolt.

Tighten
Tighten the front seat retractor side belt bolt to 42 N.m (31 lb ft).

5. Inspect the front seat shoulder belt guide adjuster cover for broken tabs. Replace the cover if the tabs are broken.
6. Install the front seat shoulder belt guide adjuster cover (3).
7. Install the center pillar upper trim panel.
