Power Seat

Removal Procedure

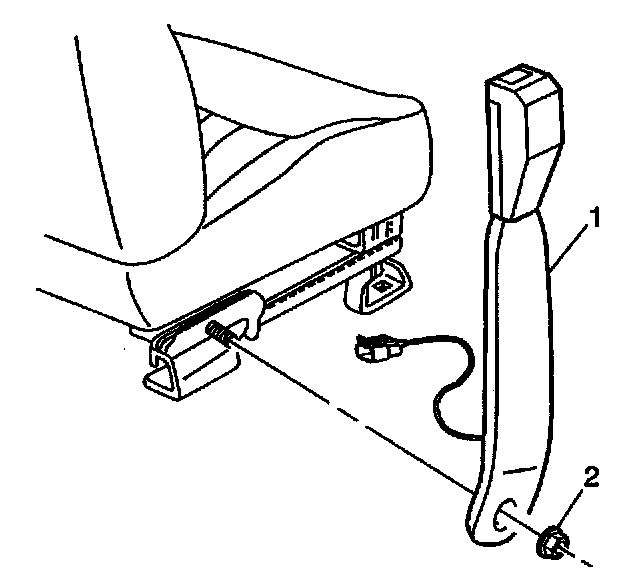

1. Position the driver seat back in order to access the driver seat buckle side belt nut.
2. Remove the driver seat belt side buckle nut (2).
3. Remove the driver seal belt side buckle (1).
4. Disconnect the electrical connector.

Installation Procedure
1. Connect the electrical connector.
2. Install the driver seat belt side buckle (1).

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the driver seat belt side buckle nut (2).

Tighten
Tighten the driver seat belt side buckle nut to 42N.m (31 lb ft).
