Fuel Pump Relay: Service and Repair

REMOVAL PROCEDURE

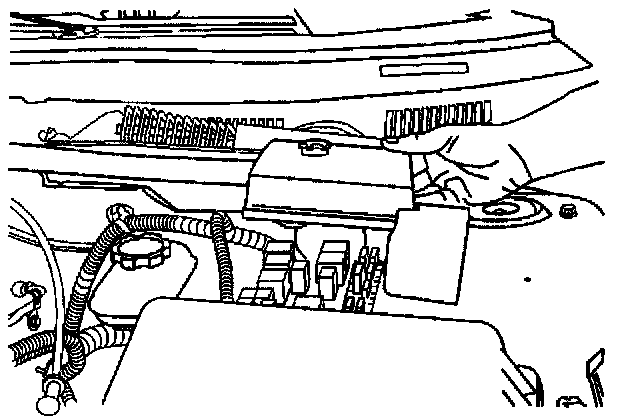

1. Remove the underhood fuseblock cover.

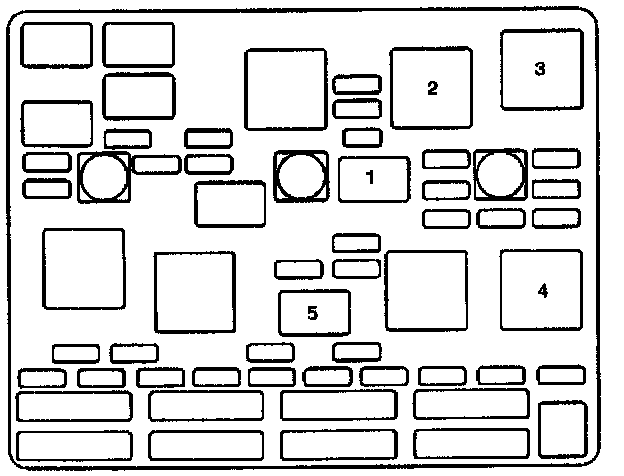

2. Remove the fuel pump relay (1).

INSTALLATION PROCEDURE




1. Install the fuel pump relay (1).




2. Install the underhood fuseblock cover.
