Accelerator Pedal: Service and Repair

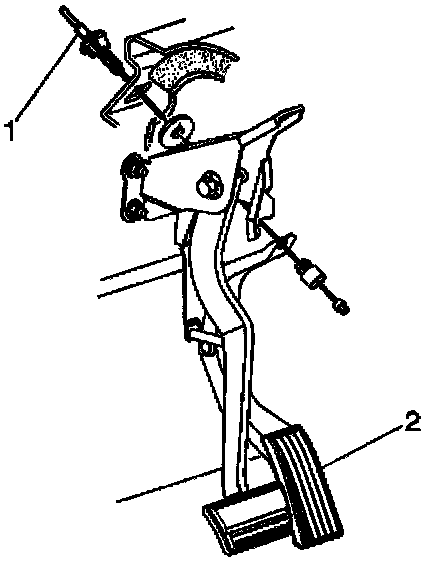

REMOVAL PROCEDURE
1. Remove the left instrument panel sound insulator.
2. Disconnect the accelerator cable from accelerator pedal.
3. Remove the accelerator pedal nuts to cowl.
4. Remove the accelerator pedal assembly.

INSTALLATION PROCEDURE
1. Position the accelerator pedal assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Reinstall the accelerator pedal nuts to cowl.

Tighten
Tighten the accelerator pedal nuts at cowl to 30 N.m (25 lb ft).

3. Connect the accelerator cable to the accelerator pedal.
4. Inspect and check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.
5. Reinstall the left instrument panel sound insulator.
