Fuses
>>
STOP LPS
STOP LPS

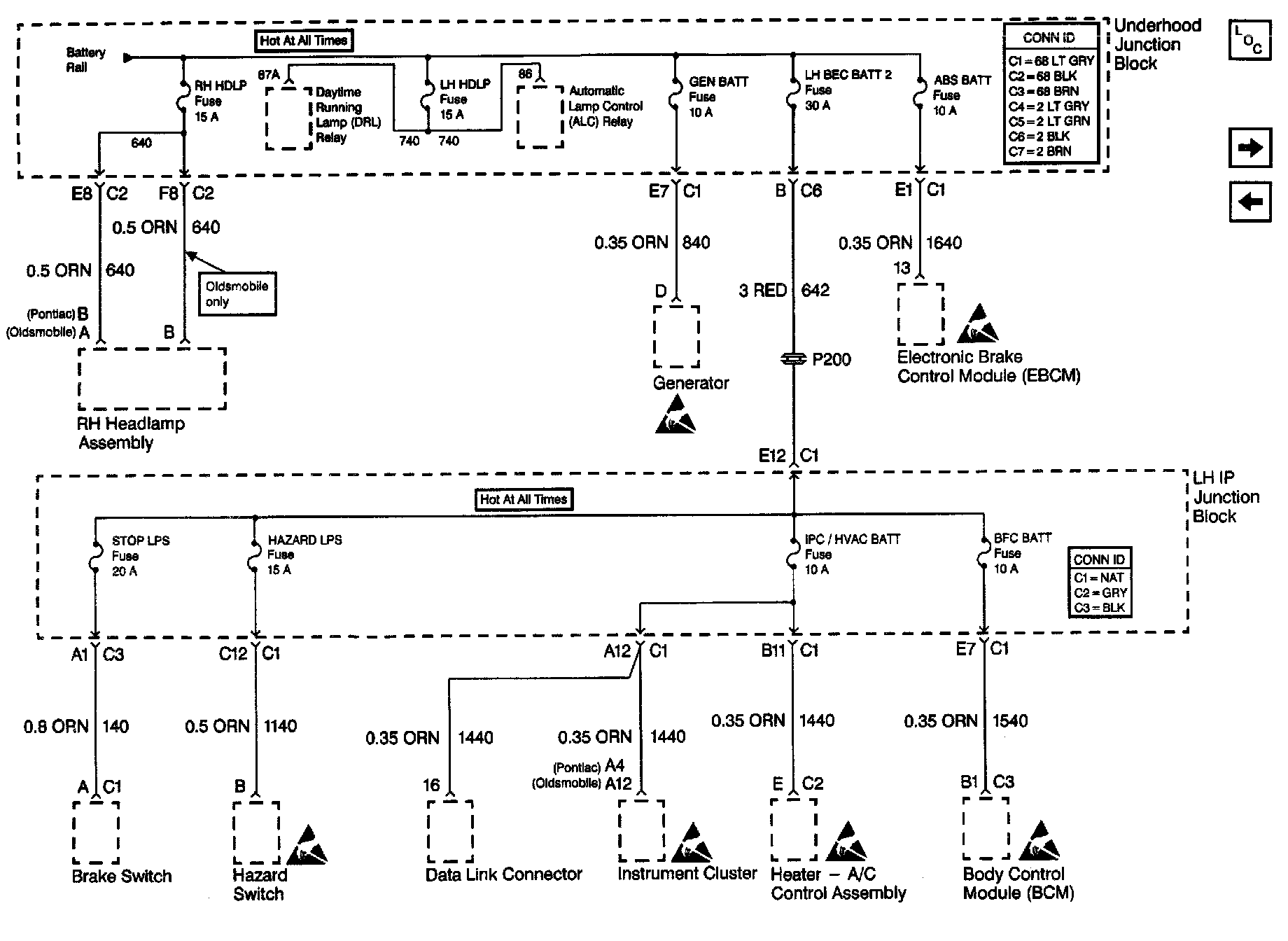

Power Distribution Schematics: RH HDLP, LH HDLP,GEN BATT, LH BEC BATT2, ABS BATT, STOP LPS, HAZARD LPS, IPC/HVAC BATT And BFC BATT Fuses:
