P/S Pressure Hose Replacement

REMOVAL PROCEDURE
1. Remove the drive belt from the vehicle.

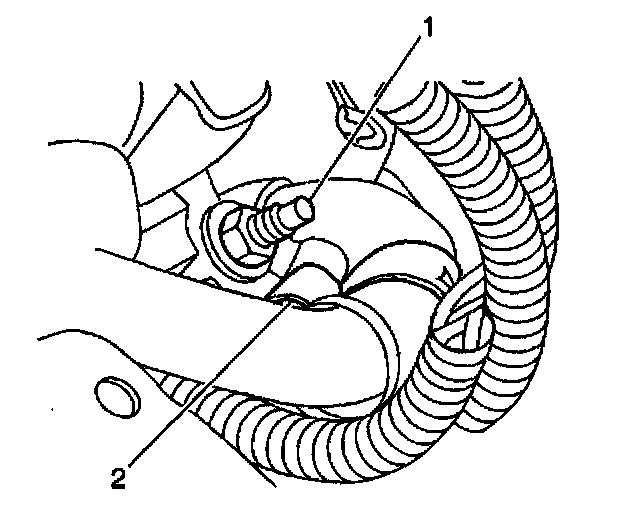

2. Remove the power steering hose retainer nut (1) from the retainer (2).

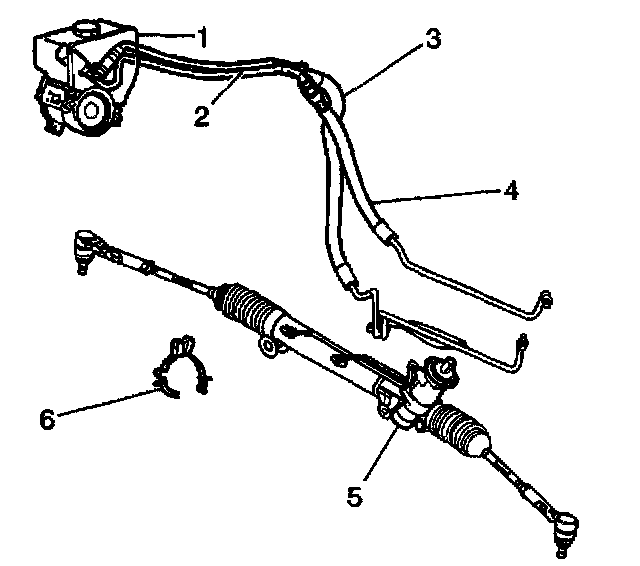

3. Remove the pressure hose (4) from the power steering pump (1).
4. Raise the vehicle on a hoist.
5. Remove the pressure hose (4) from the retainer (6).
6. Remove the pressure hose (4) from the power steering gear (5).
7. Remove the pressure hose (4) from the vehicle.

INSTALLATION PROCEDURE

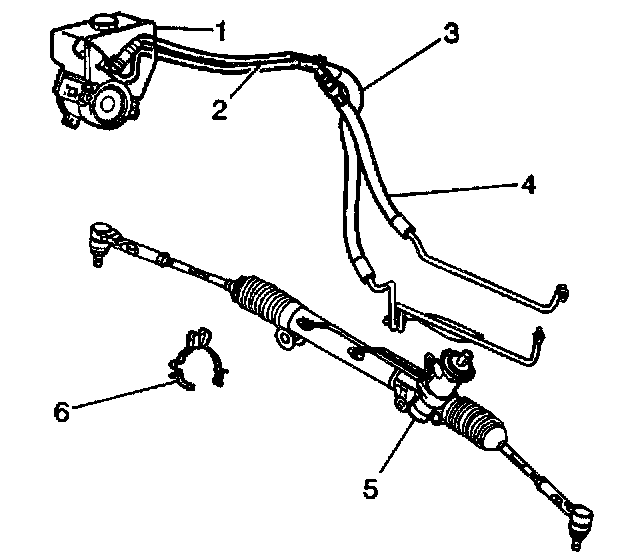

1. Install the pressure hose (4) to the power steering gear (5).
Tighten the pressure hose to 27 Nm (20 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the pressure hose (4) to retainer (6).
3. Lower the vehicle.
4. Install the pressure hose (4) to the power steering pump (11).
Tighten the pressure hose to 27 Nm (20 ft. lbs.).

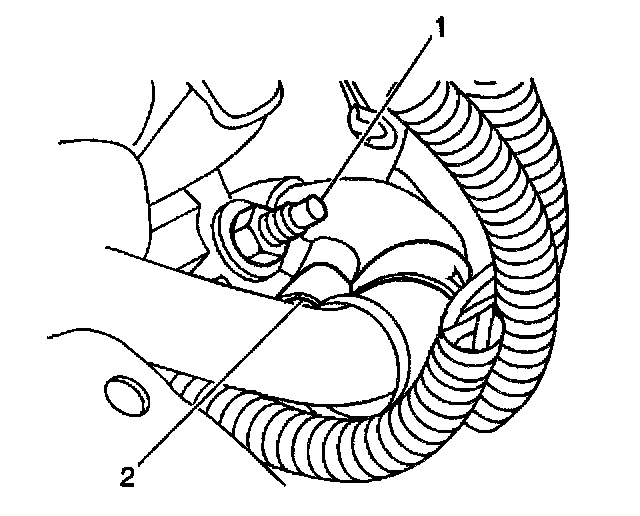

5. Install the power steering hose retainer.
Tighten the retainer nut to 5 Nm (45 inch lbs.).
6. Install the drive belt to the power steering pump pulley.
7. Bleed the air from the power steering system.
