Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
System Diagram

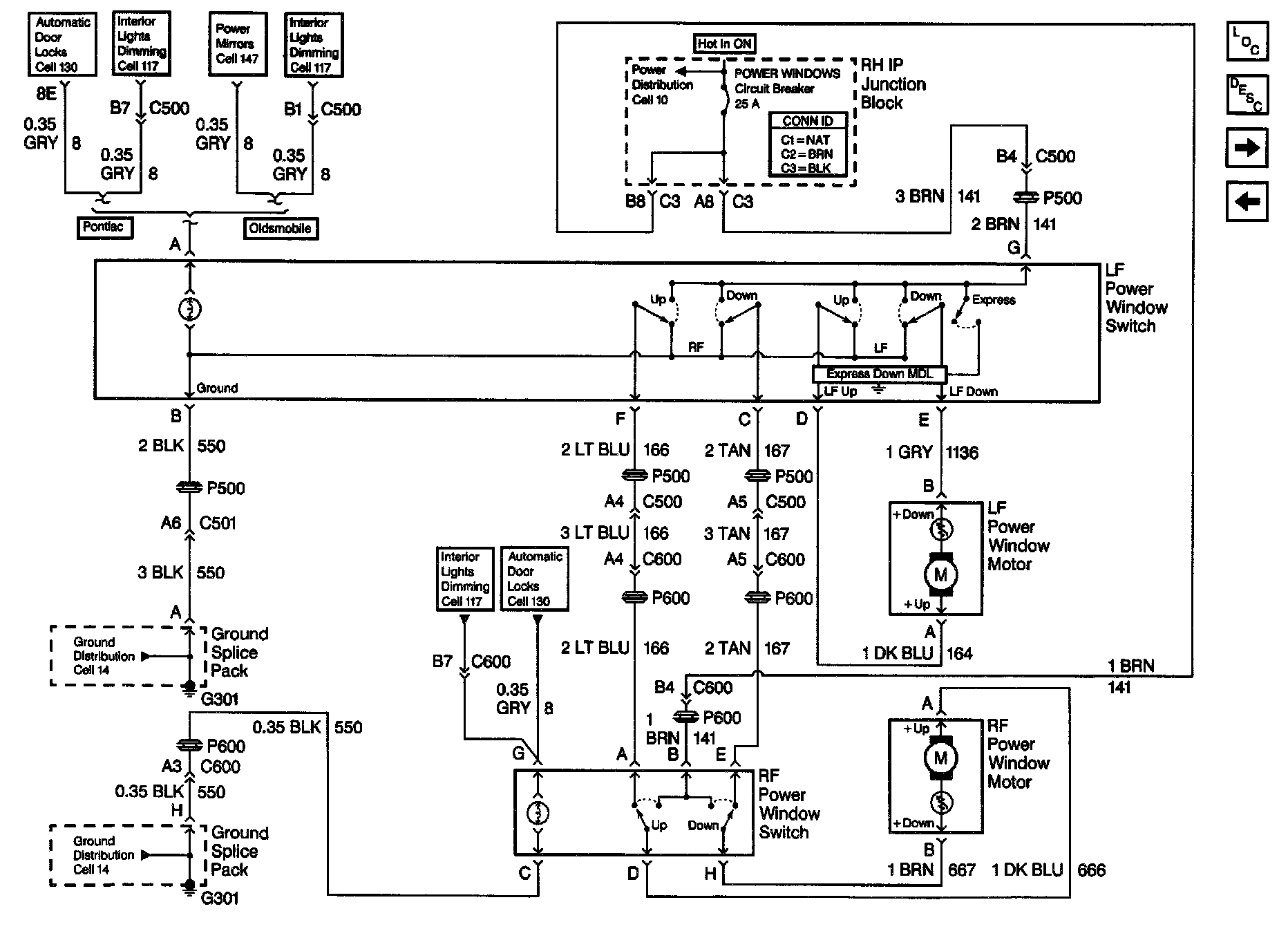

Power Windows Schematics:

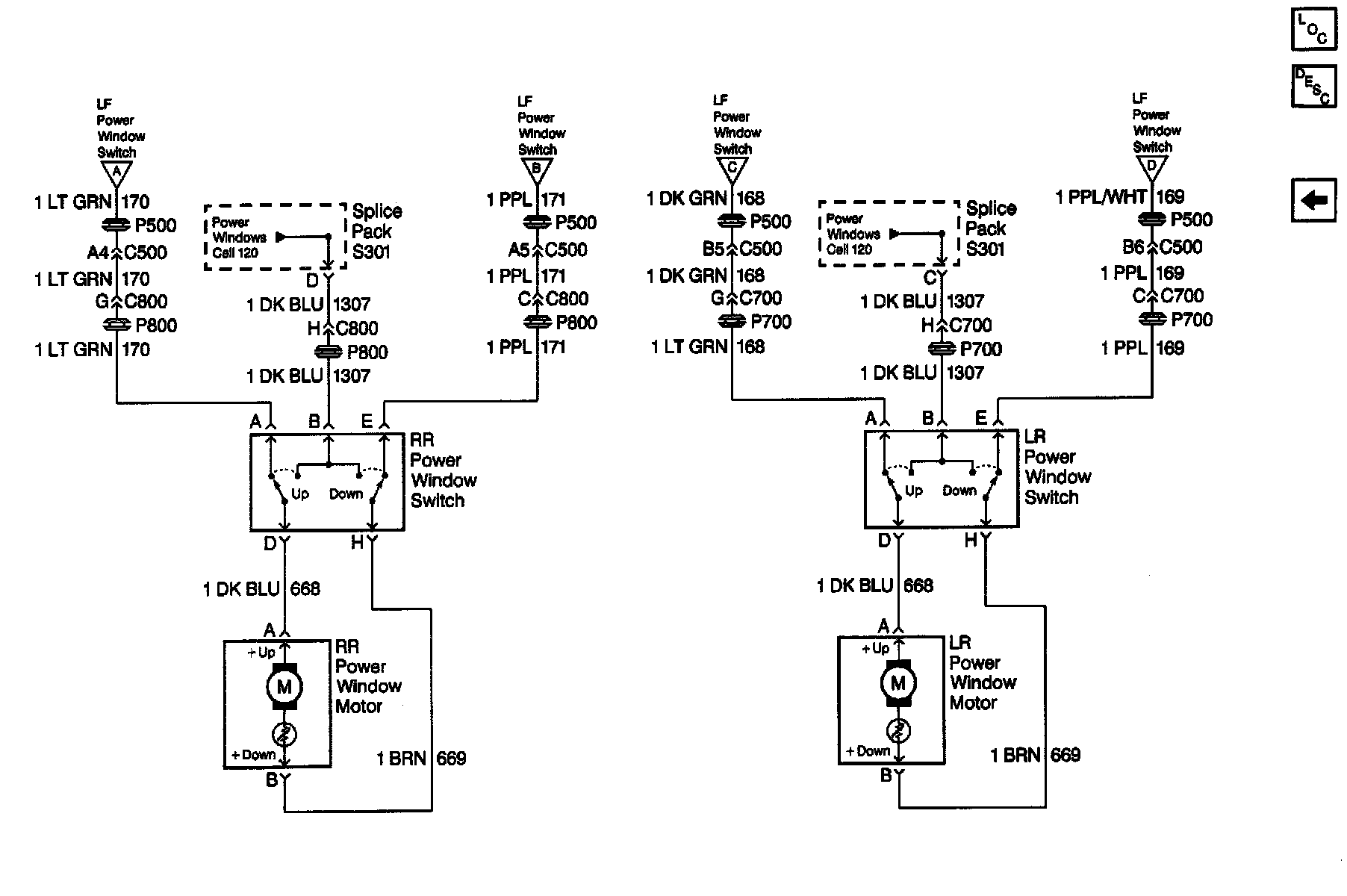

Power Windows Schematics:

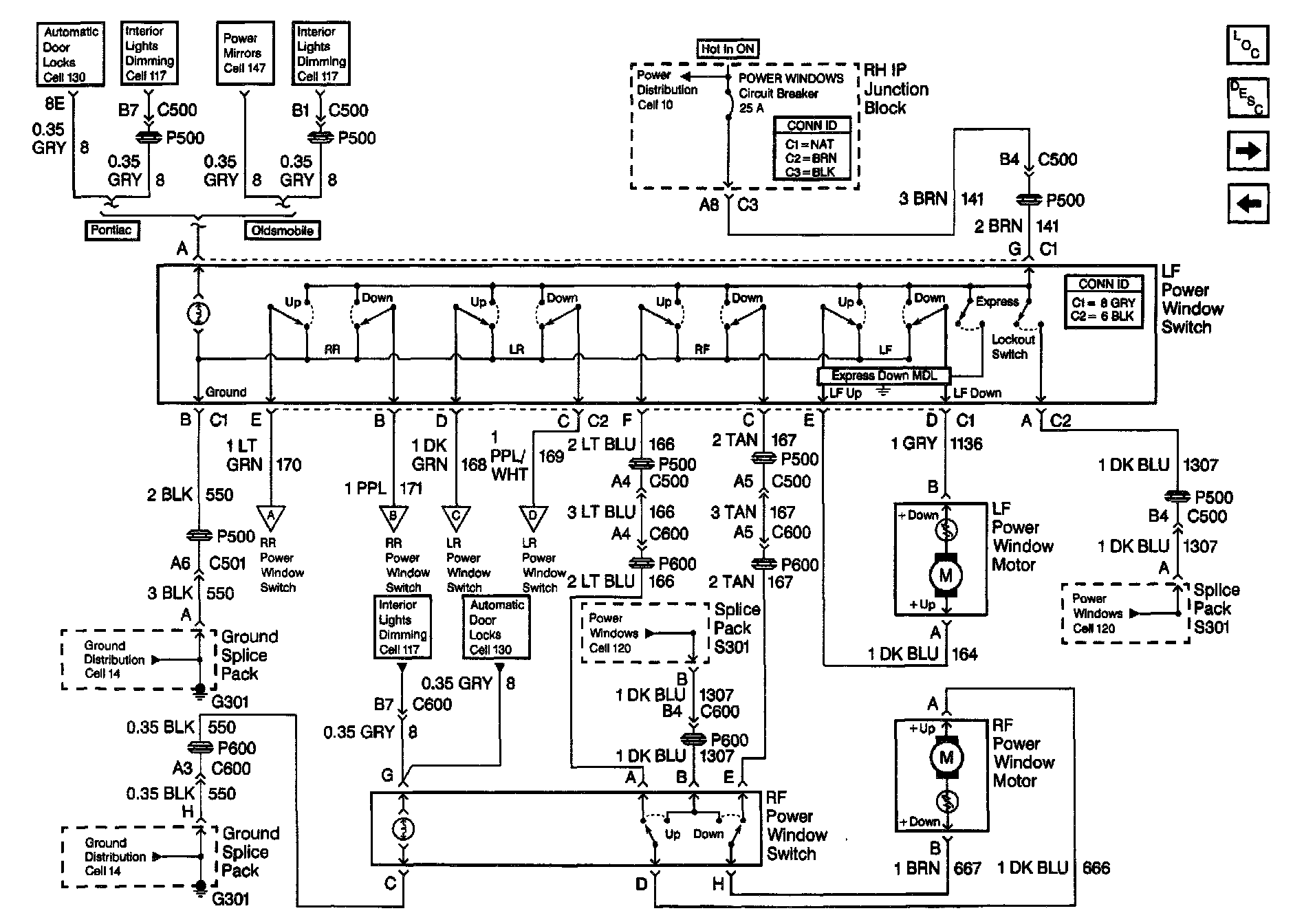

Power Windows Schematics:
