Home >> Oldsmobile >> 1999 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> 4-Way Power Seats

4-Way Power Seats

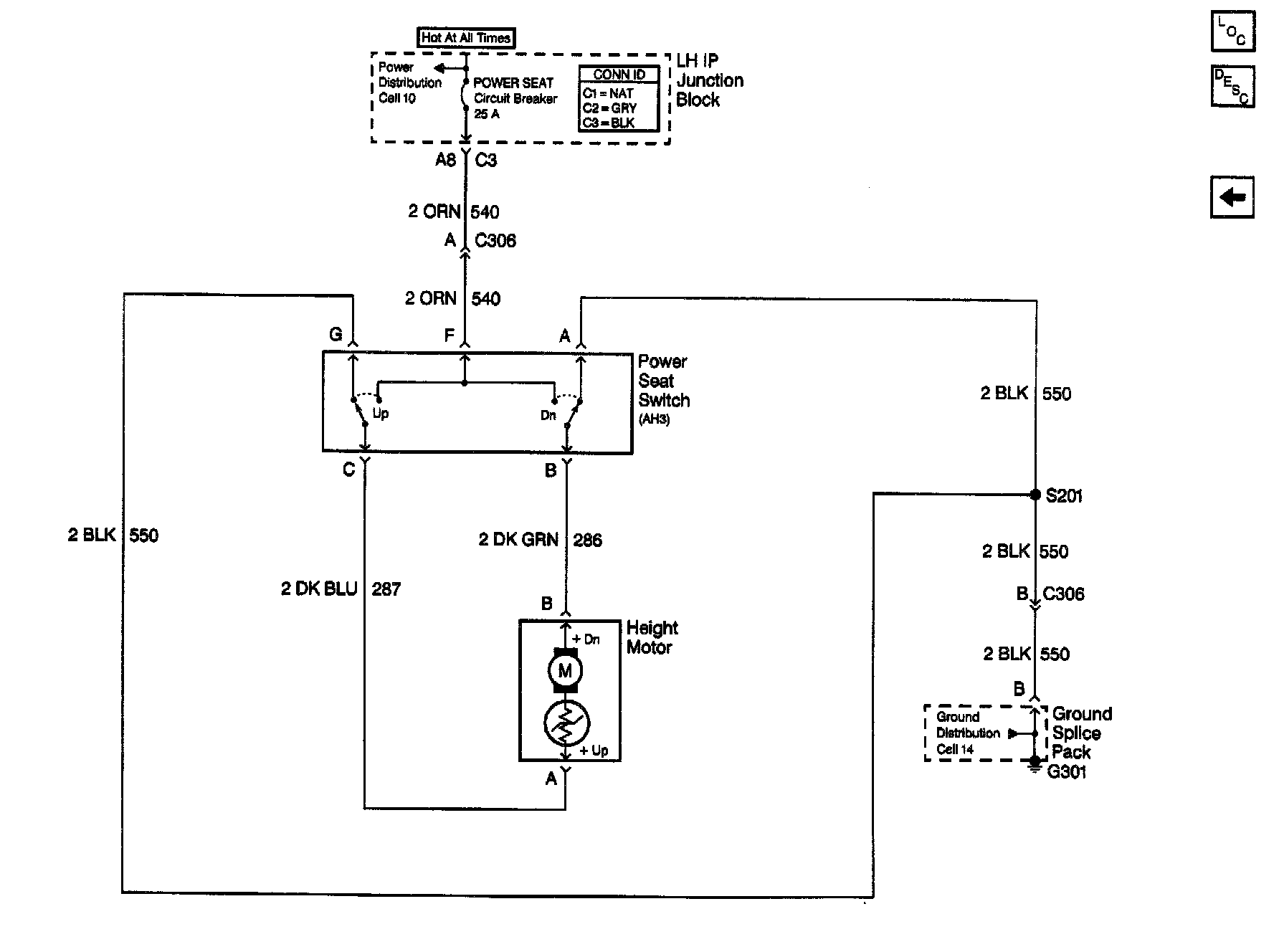

Power Seats Schematics: 4-Way Power Seats:
