Home
>>
Oldsmobile
>>
1999
>>
Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Radio/Audio System Schematics
>>
General
General

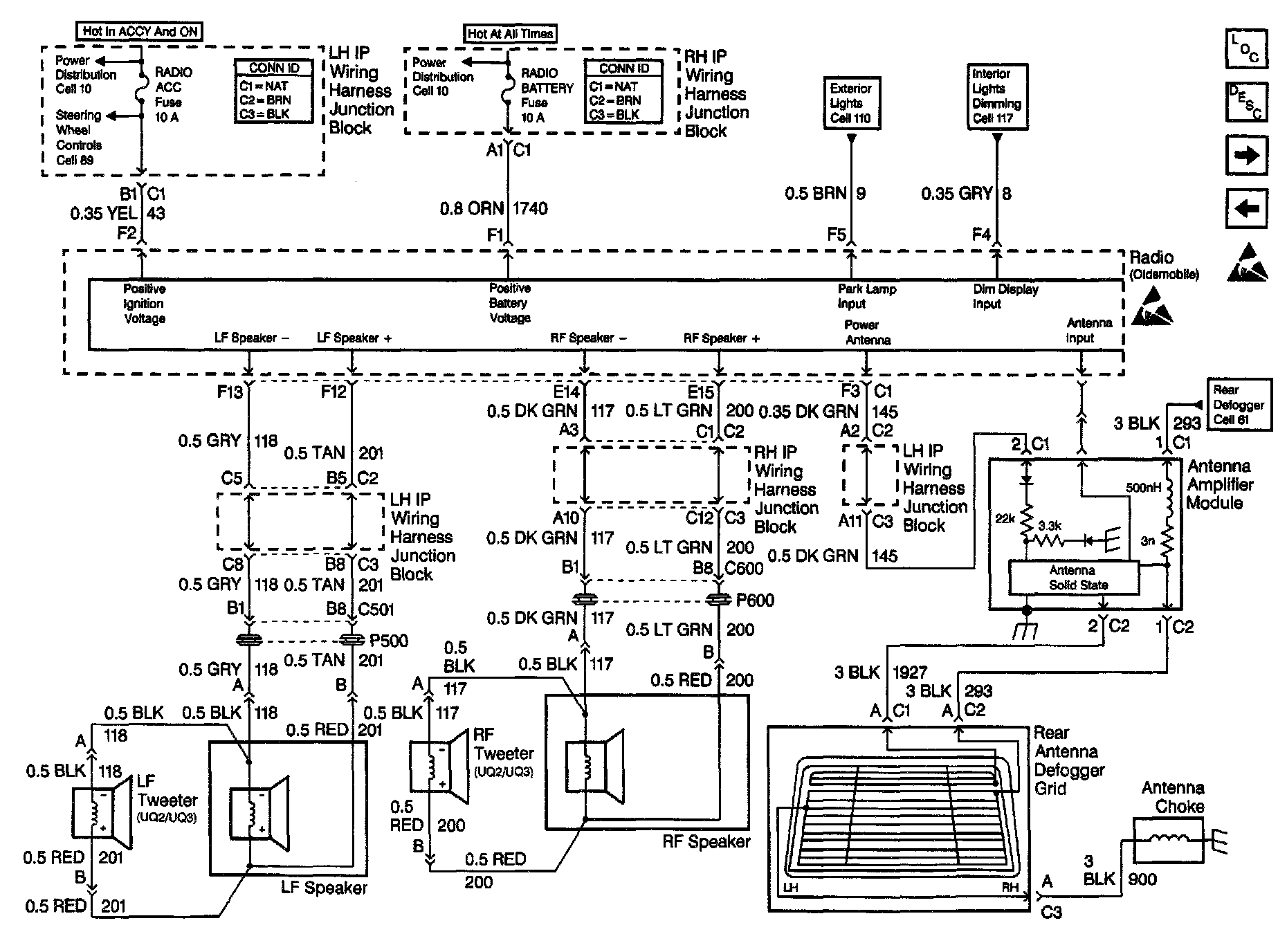

Radio/Audio System Schematics:
