Rear Compartment Lid Release Motor, Switch And Relay

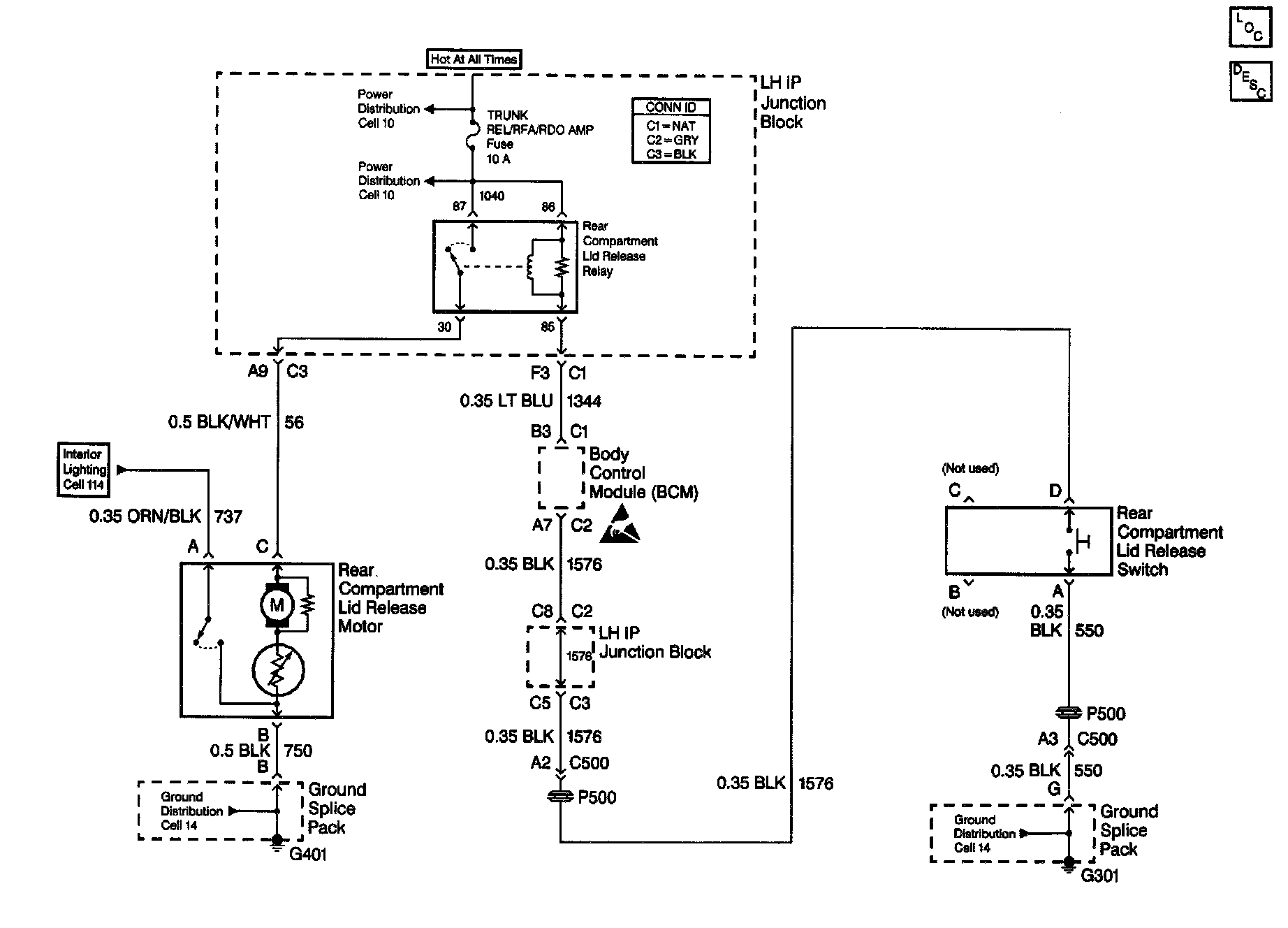

Keyless Entry Schematics: Rear Compartment Lid Release Motor, Switch And Relay:
