Oldsmobile
>>
1999
>>
Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

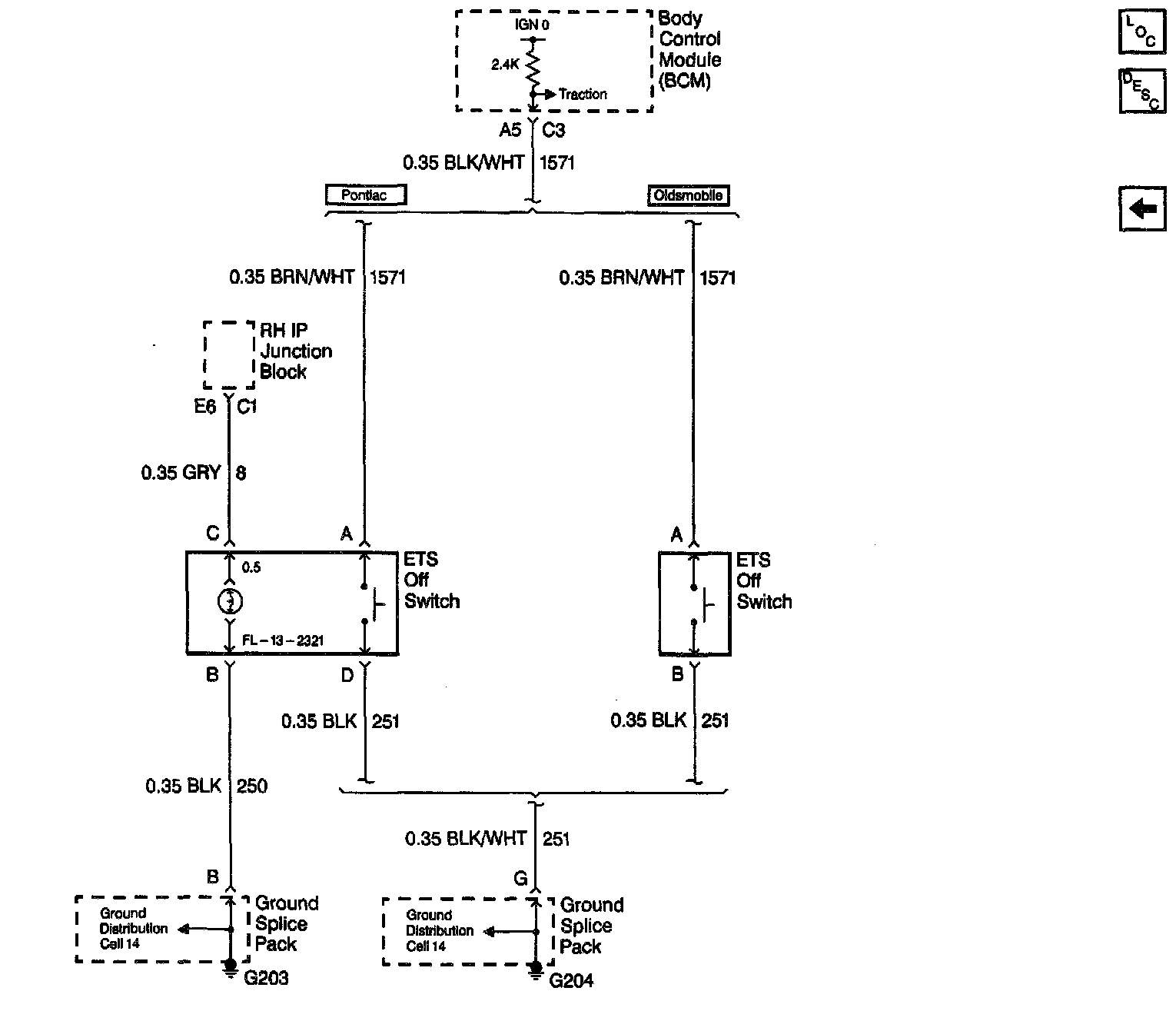

Antilock Brakes / Traction Control Systems
>>

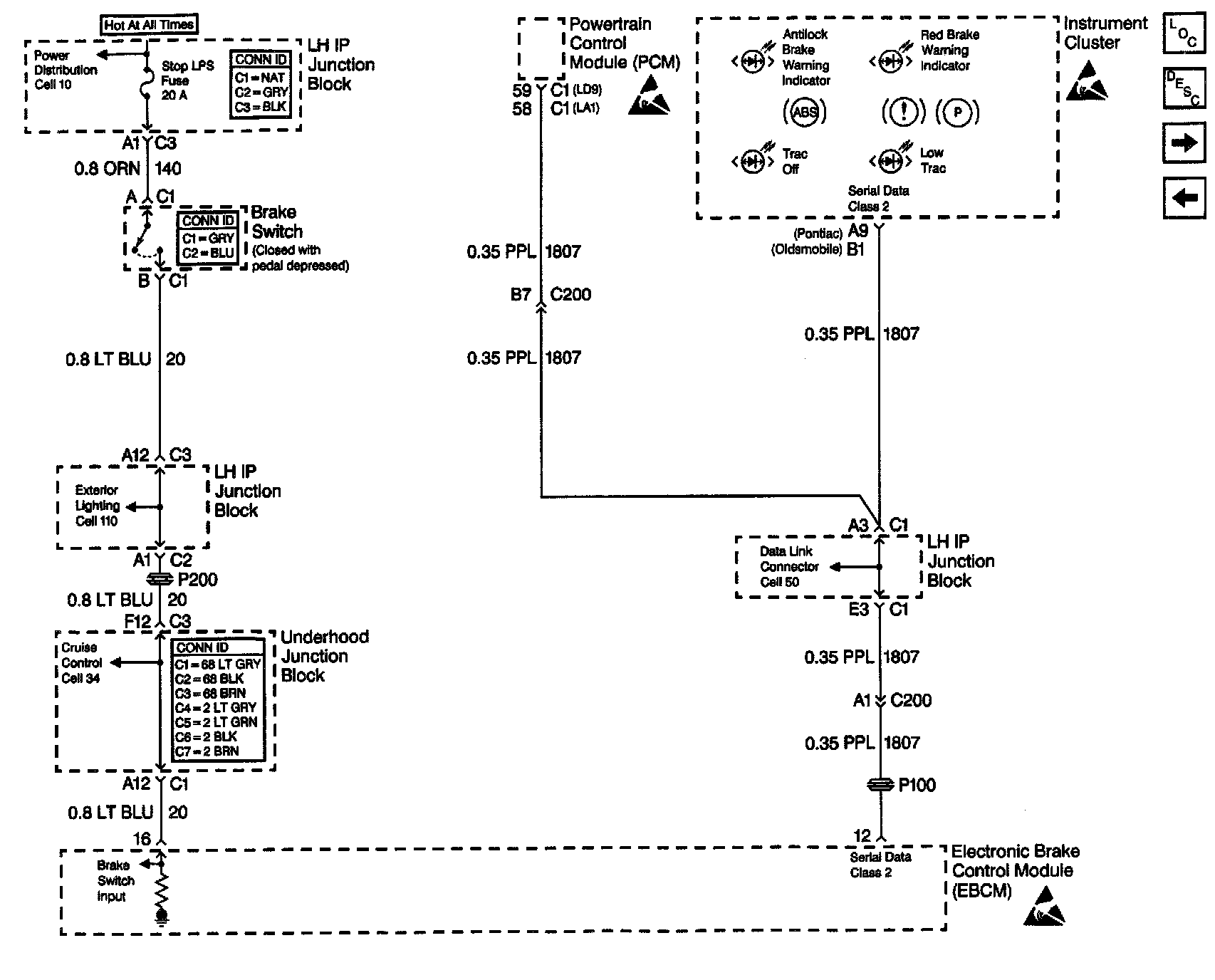

Cell 44: Instrument Cluster, Brake Switch and PCM
Cell 44: Instrument Cluster, Brake Switch and PCM
