Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Underhood Junction Block
>>
C2
C2

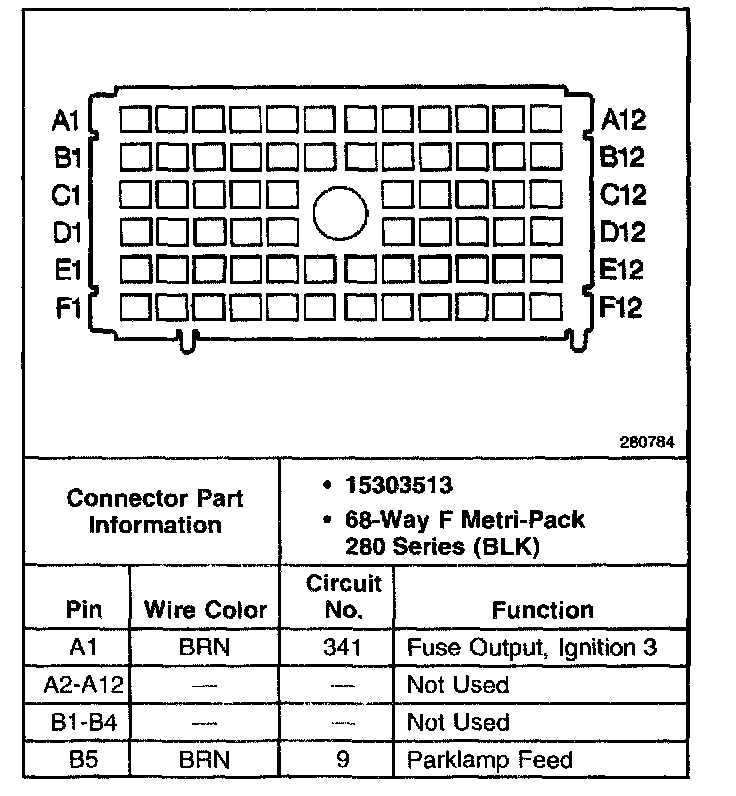

Underhood Junction Block C2 (Part 1 Of 3):
Underhood Junction Block C2 (Part 2 Of 3):
Underhood Junction Block C2 (Part 3 Of 3):
