C1: LD9 Only
C1: LD9 Only

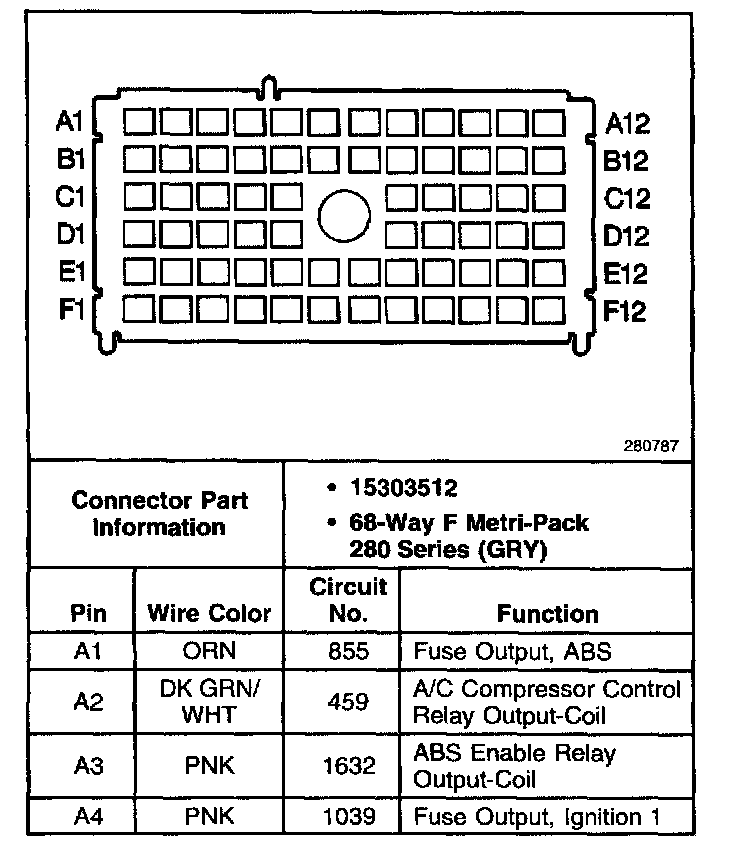

Underhood Junction Block C1: LD9 Only (Part 1 Of 3):

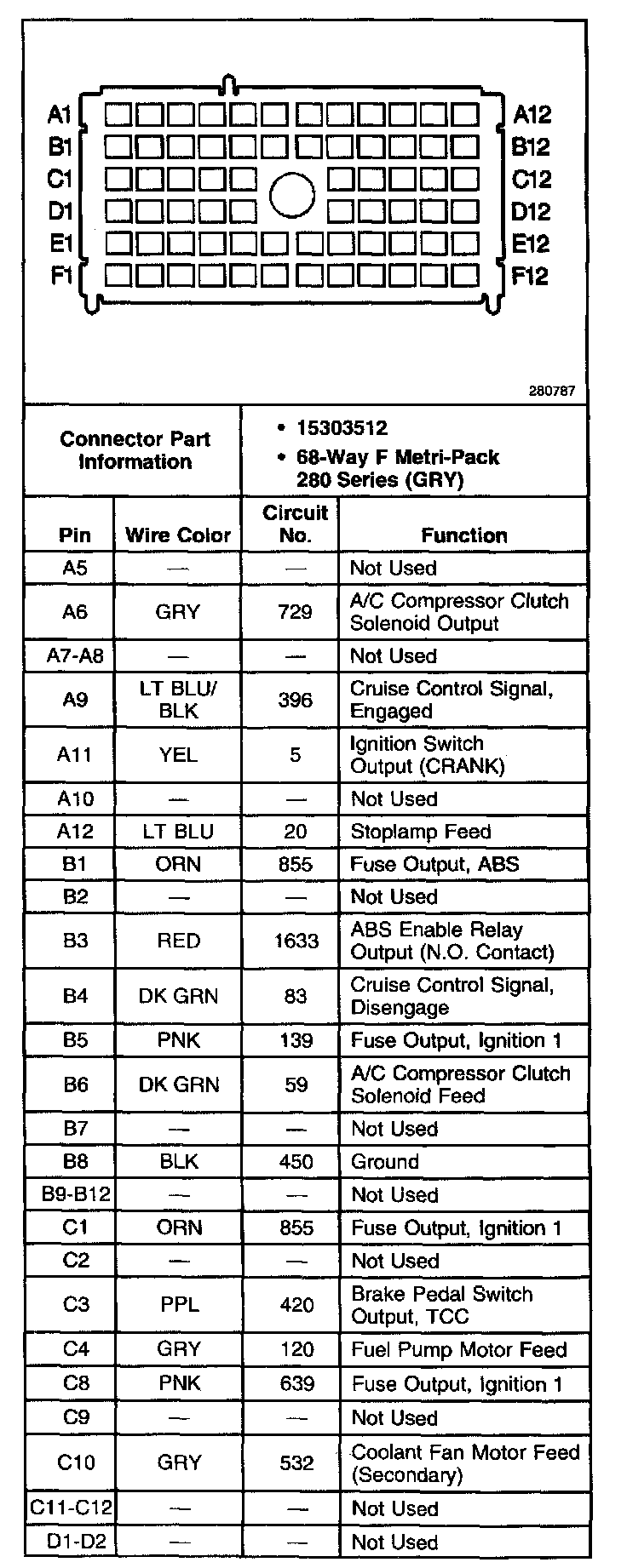

Underhood Junction Block C1: LD9 Only (Part 2 Of 3):

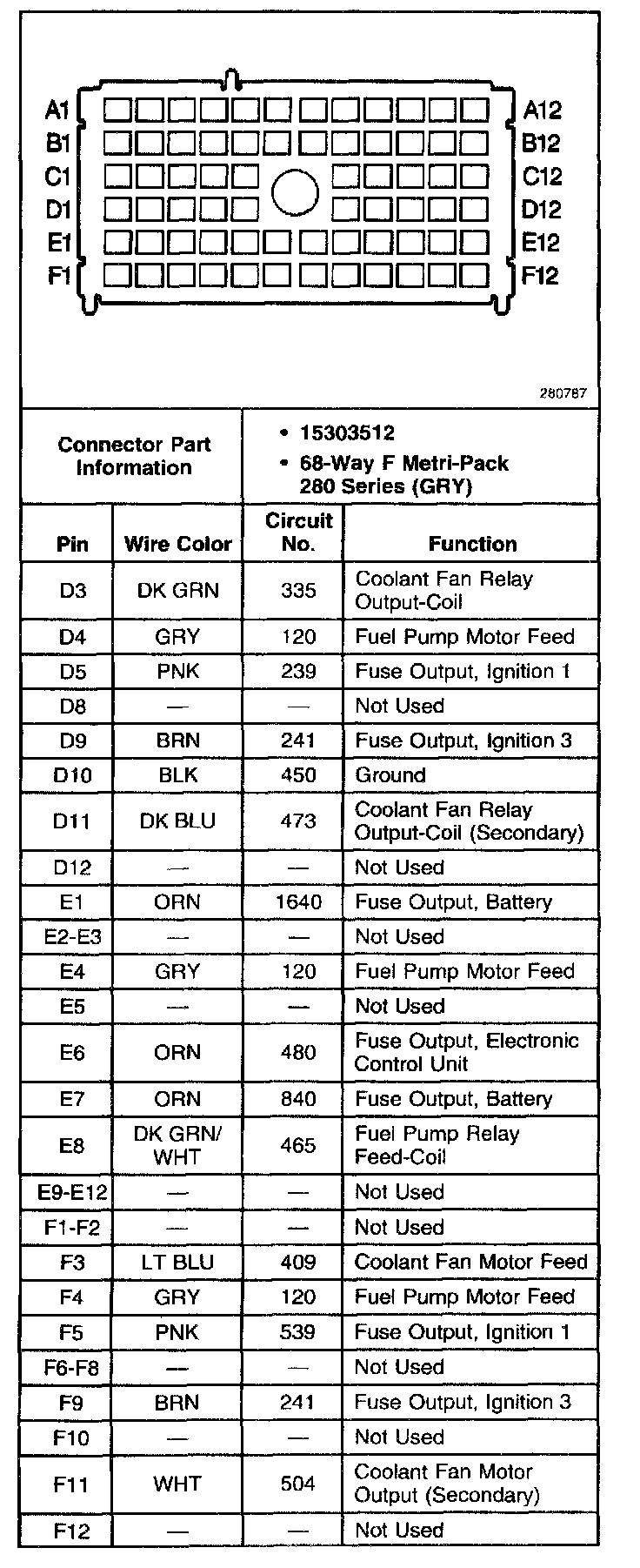

Underhood Junction Block C1: LD9 Only (Part 3 Of 3):
