Parking Brake Shoe: Service and Repair

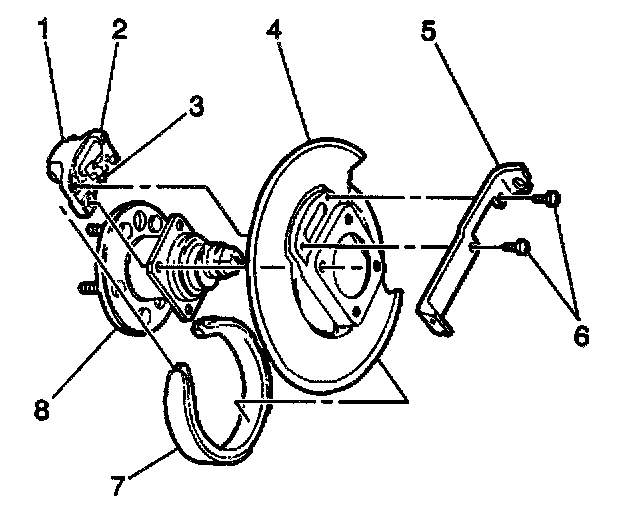

REMOVAL PROCEDURE





1. Remove the rotor.
2. Remove the parking brake actuator (2).
3. Remove the rear wheel hub (8).
4. Remove the shoe and lining (7).

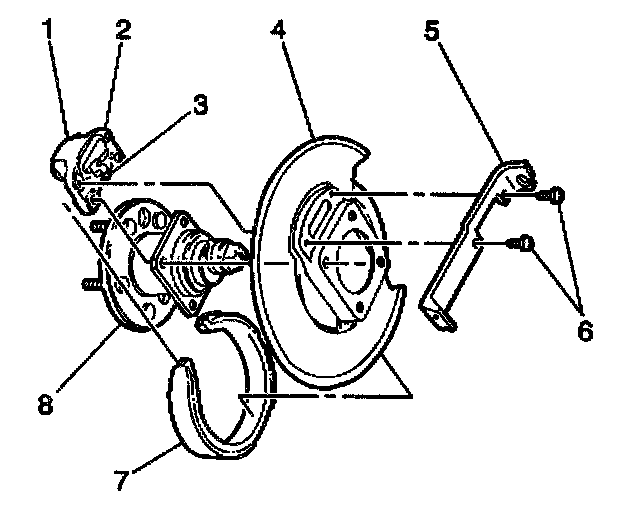

INSTALLATION PROCEDURE





1. Install shoe and lining (7).
2. Install the rear wheel hub.
3. Install the parking brake actuator (2).
4. Adjust the rear parking brake shoe and lining.
5. Install the rotor.
