Modulator Gear Cover Replacement

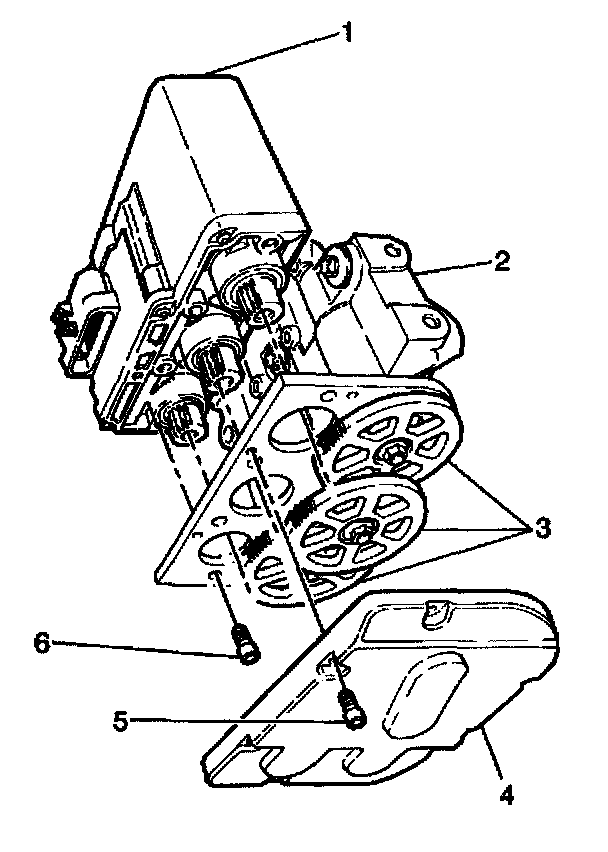

REMOVAL PROCEDURE





1. Remove the Brake Modulator Assembly.
2. Remove the Tore head screws (5) that attach the gear cover.
3. Remove the gear cover (4).

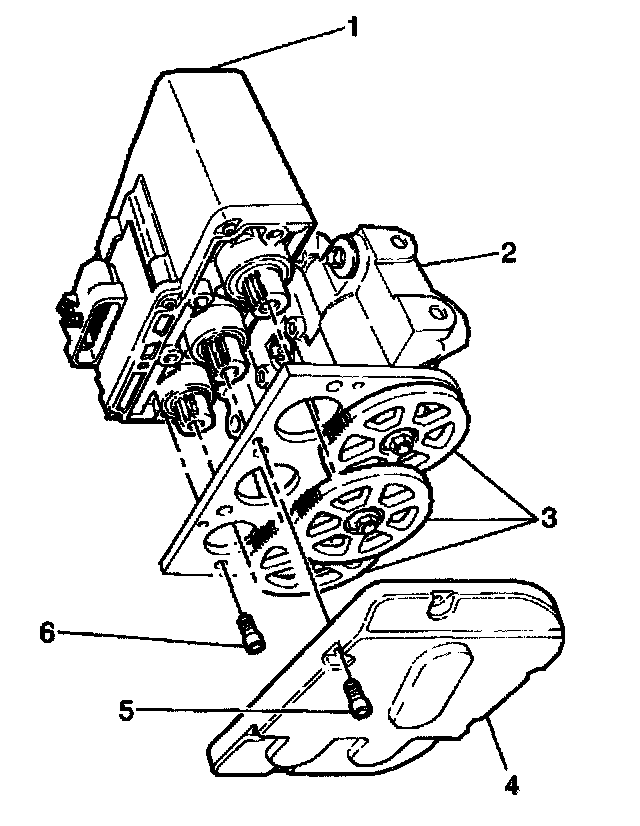

INSTALLATION PROCEDURE





1. Install the gear cover (4) onto the modulator assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the Torx head screws (5).
^ Tighten the Tore screws to 4 Nm (36 inch lbs.).
3. Install the Brake Modulator Assembly.
