Brake Modulator Replacement

REMOVAL PROCEDURE





1. Remove the brake modulator assembly.

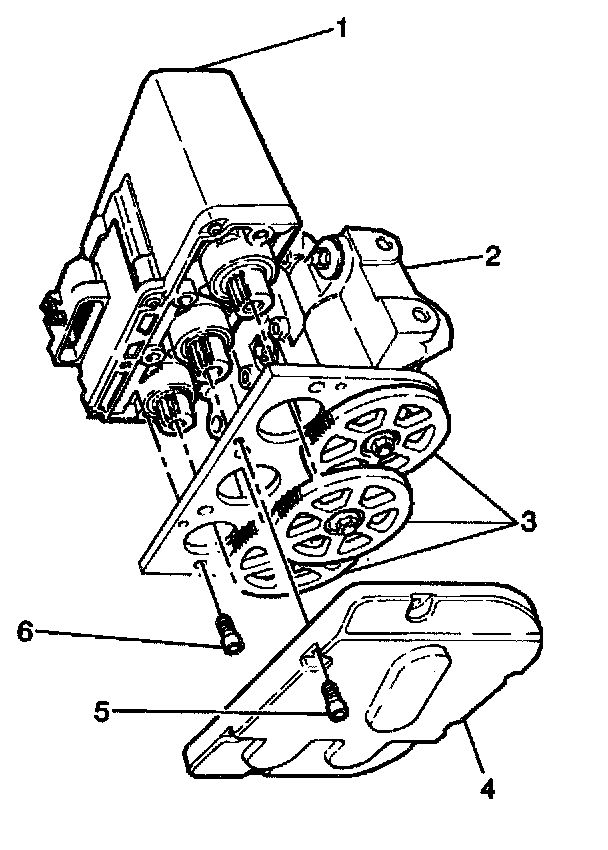

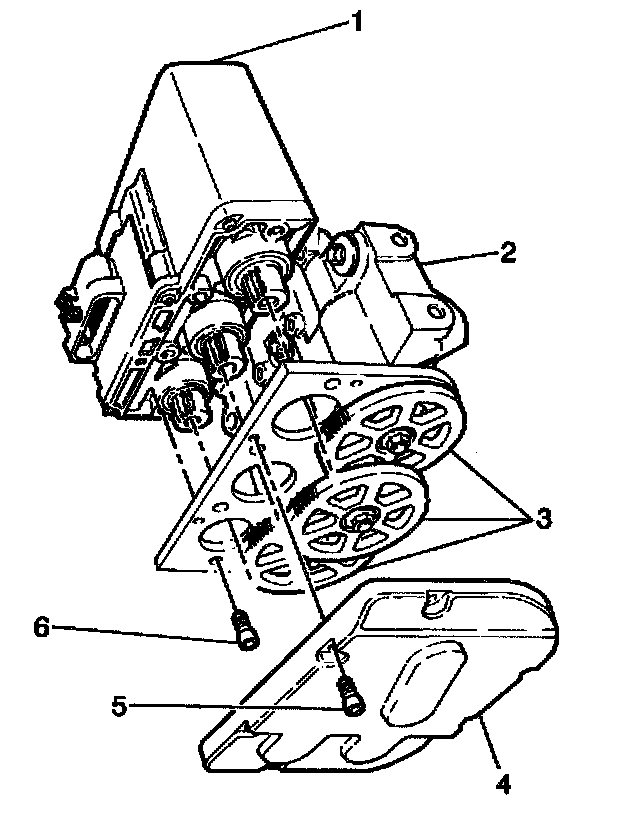

2. Remove the Torx head screws (5) attaching the gear cover (4).
3. Remove the gear cover (4).
4. Remove the four Torx head screws (6) attaching the motor pack (1) to the brake modulator (2).
5. Remove the motor pack (1) from the brake modulator (2).
6. Remove the Torx head screws that retain the proportioning valve.
7. Remove the proportioning valve.

INSTALLATION PROCEDURE

Important: When replacing the ABS brake modulator, install the three gears in the same location on the replacement brake modulator.

No repair of the ABS brake modulators authorized. Replace the ABS brake modulator as an assembly.





1. Install the proportioning valve to the hydraulic modulator.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the Torx head screws that retain the proportioning valve to the hydraulic modulator.
^ Tighten the Torx head screws to 12 Nm (106 inch lbs.).

Important: A new gasket MUST be used when installing the Proportioning Valve,

3. With the ABS brake modulator positioned upside down, and the gears facing you, rotate each ABS brake modulator gear clockwise until movement stops.
The procedure causes the following conditions:
^ The pistons are positioned very close to the top of the modulator bore.
^ The brake bleeding procedure is simplified.

4. Install the ABS brake motor pack (1) onto the brake modulator assembly (2).
5. Install the four Torx head screws (6) that retain the motor pack (1) to the brake modulator (2).
^ Tighten the four Torx head screws to 5 Nm (44 inch lbs.).
6. Install the gear cover (4) to the brake modulator assembly (2).
7. Install the Torx head screws (5) that retain the gear cover (4).
^ Tighten the Torx head screws to 4 Nm (36 inch lbs.).
8. Install the brake modulator assembly.
9. Perform the ABS Diagnostic System Check.
