Seat Cushion: Service and Repair

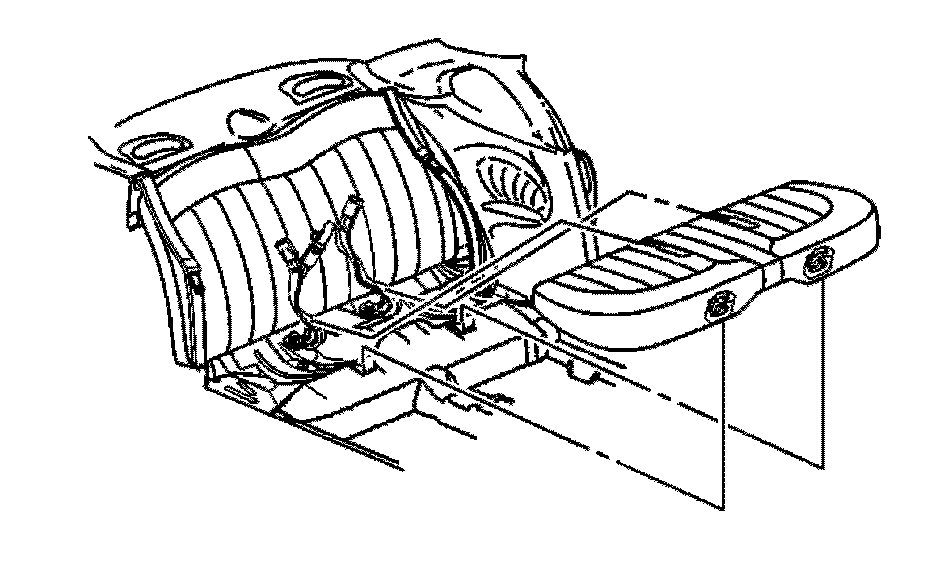

Rear Seat Cushion Replacement

Removal Procedure






1. Press the rear seat cushion retainer rearward using a flat-bladed tool.






2. Lift the rear seat cushion upward.
3. Remove the rear seat cushion.

Installation Procedure






1. Install the rear seat cushion.






2. Press downward on the rear seat cushion in order to latch the retainer.
