Power Seat Switch: Service and Repair

REMOVAL PROCEDURE
1. Remove the seat back recliner handle.

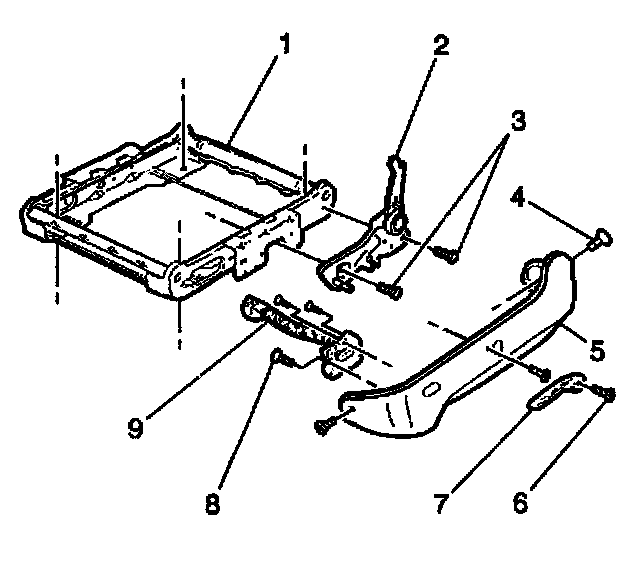

2. Remove the seat cushion outer trim panel (5).
3. Disconnect the electrical connector.
4. Remove the seat switch (9) from the seat wiring harness.
Depress the retaining tabs.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the seat switch (9).

Tighten
Tighten the screws to 1 N.m (4 lb in).

2. Connect the electrical connector.
3. Install the seat cushion outer trim panel (5).
4. Install the seat back recliner handle.
