Body Control System

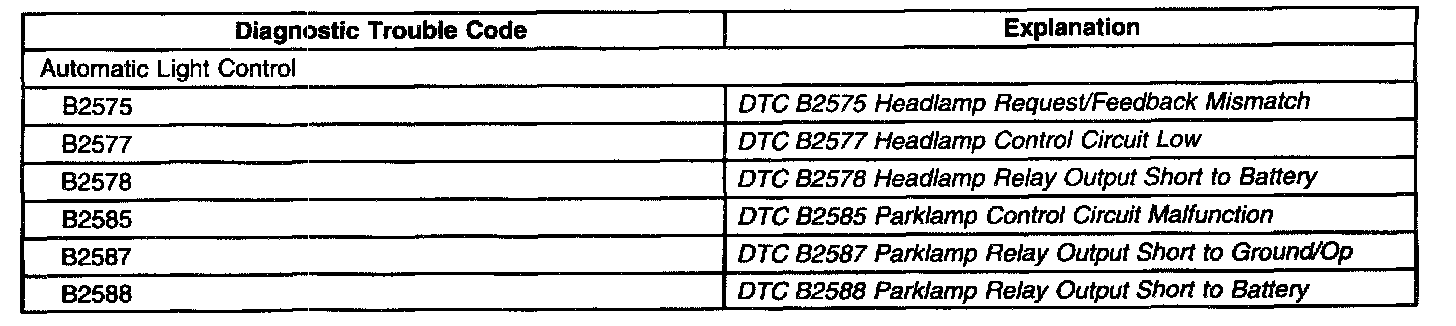

Diagnostic Trouble Code (DTC) List/Type (part 1 Of 2):

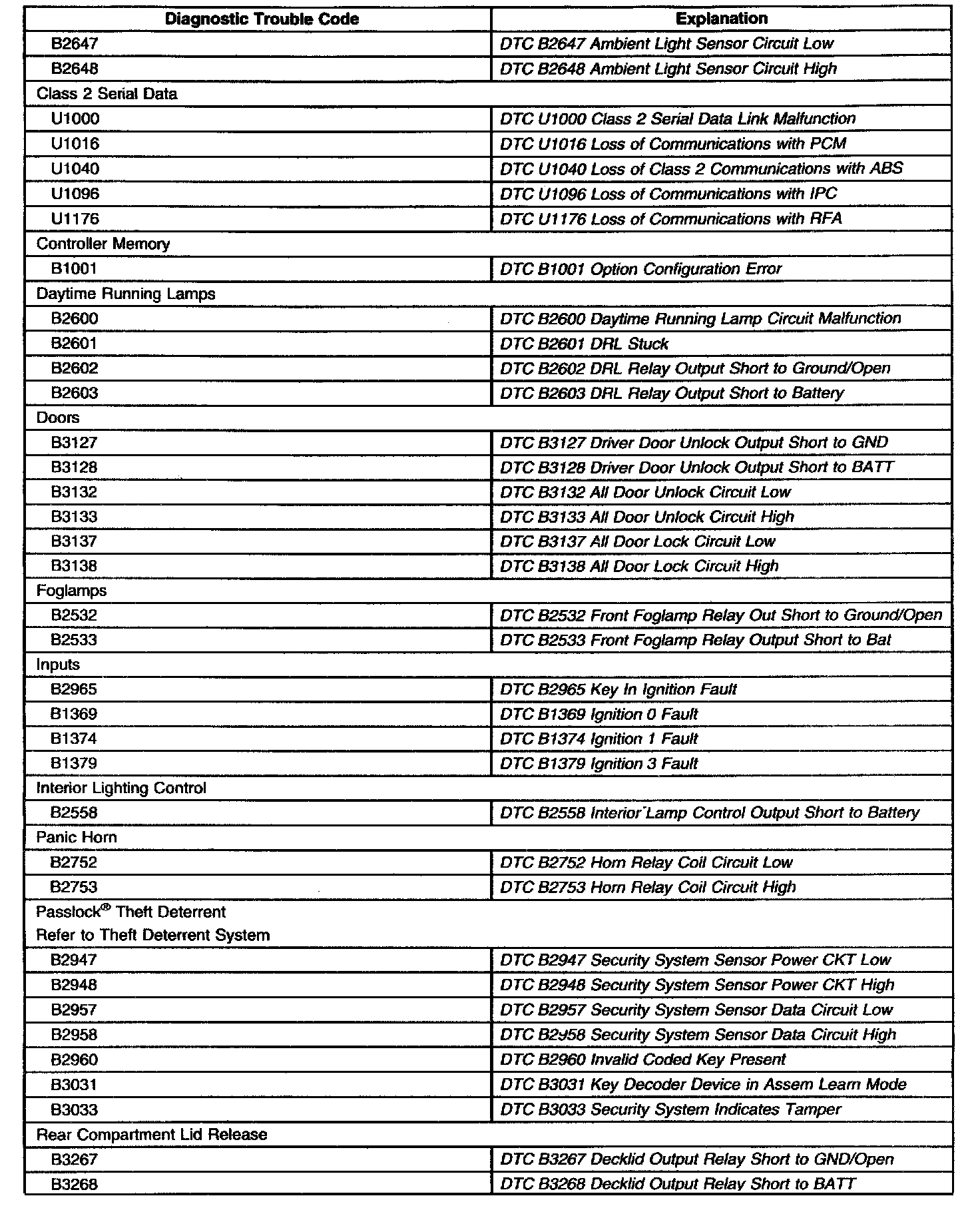

Diagnostic Trouble Code (DTC) List/Type (part 2 Of 2):

IMPORTANT: DO NOT replace the Body Control Module (BCM) unless a Diagnostic Trouble Code (DTC) remains current after all the DTC tables have been executed. DO NOT replace the BCM based on history codes.

The BCM has the following characteristics:
^ Connected to the Class 2 serial data link
^ Capable of setting DTCs

A history DTC code is a fault that disappears in the next ignition cycle. The history DTC codes are useful in diagnosing an intermittent problem. An explanation of these DTCs is given in the table as shown above.
