Antitheft and Alarm Systems

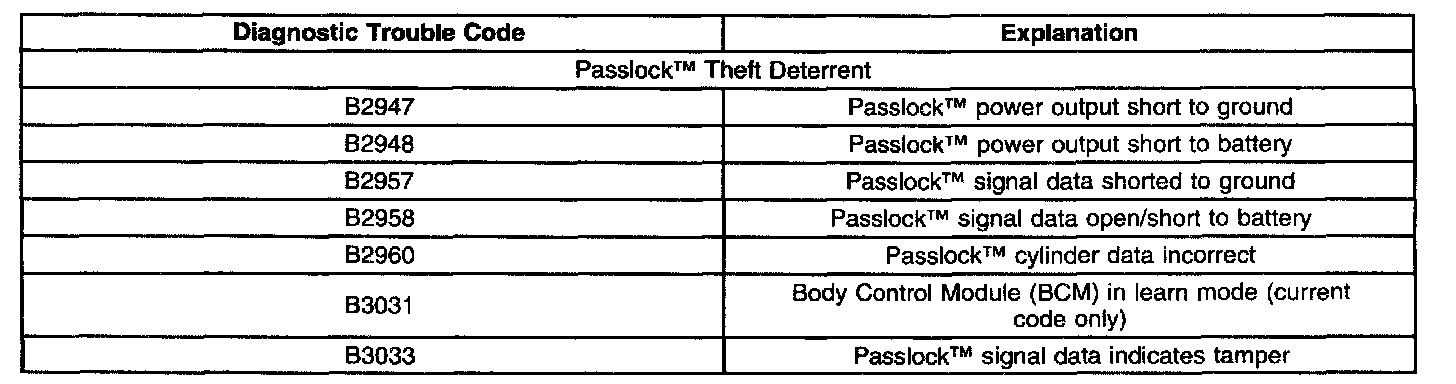

DTC Table:

IMPORTANT: DO NOT replace the Body Control Module (BCM) unless a Diagnostic Trouble Code (DTC) remains current after all of the DTC tables are executed. DO NOT replace the BCM based on the history codes.

The BCM is connected to the Class 2 serial data link. The BCM is capable of setting the DTCs. A history DTC is a fault that disappears in the next ignition cycle. The history DTCs may be especially useful in diagnosing an intermittent problem. An explanation of the history DTCs are given below in the DTC table.
