B3267

DTC B3267 Decklid Output Relay Short To GND/Open:

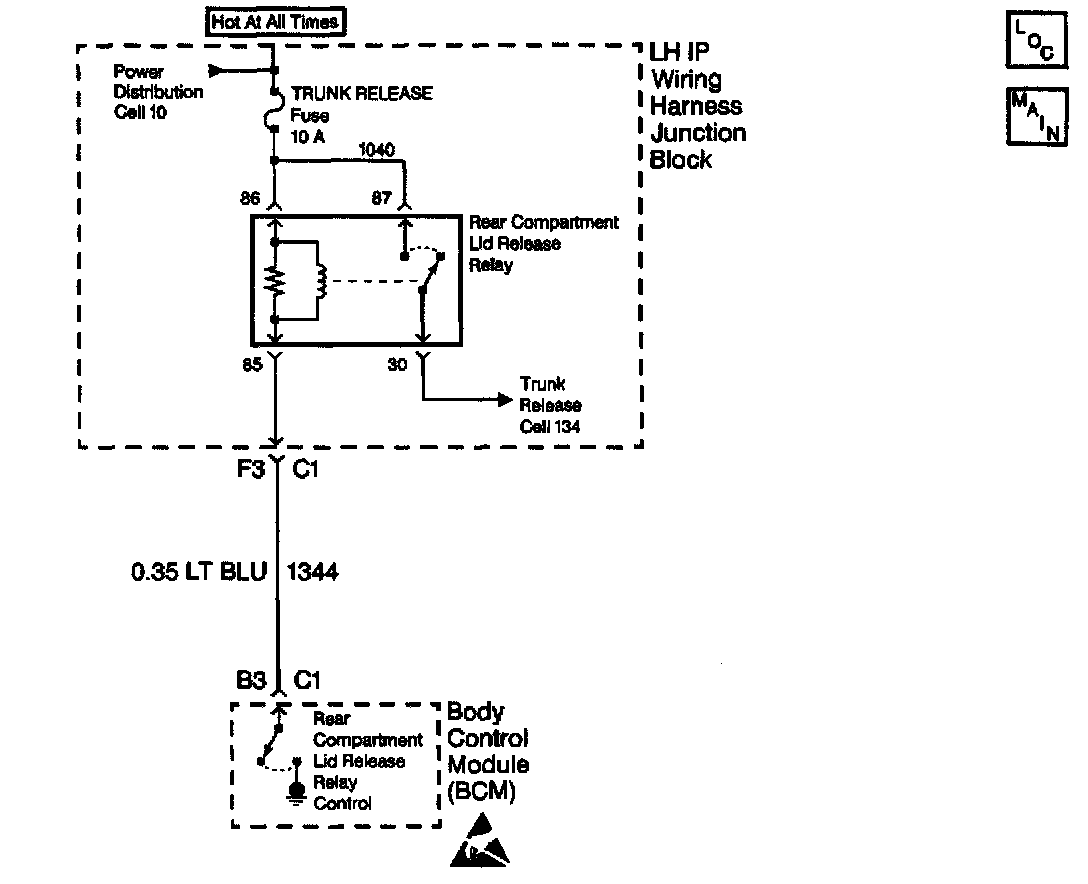

CIRCUIT DESCRIPTION
This trouble code (both current and history) indicates that CKT 1344 is shorted to ground or is open.

CONDITIONS FOR SETTING THE DTC
All of the following conditions must be met:
^ CKT 1344 is shorted to ground or is open.
^ The system voltage must be between 9-16 volts.
^ The above conditions must be met for 0.5 seconds.

ACTION TAKEN WHEN THE DTC SETS
Stores DTC B3267 in the Body Control Module (BCM) memory.

CONDITIONS FOR CLEARING THE DTC
^ The BCM goes to sleep and reinitializes with the fault cleared.
^ All of the BCM history codes clear after 100 ignition cycles (from OFF to ON) with no current codes active during the 100 ignition cycles.
^ Use the Scan Tool in order to clear DTCs.

DIAGNOSTIC AIDS
^ When the diagnostics directs you to take electrical measurements at the wiring harness junction block, refer to Diagrams.
^ If the DTC is a history DTC, the problem may be intermittent. Perform the above tests while wiggling the wiring and connectors. This will cause the malfunction to appear.
^ If CKT 1344 is shorted to ground, the deck lid will not close until the fuse blows.

TEST DESCRIPTION

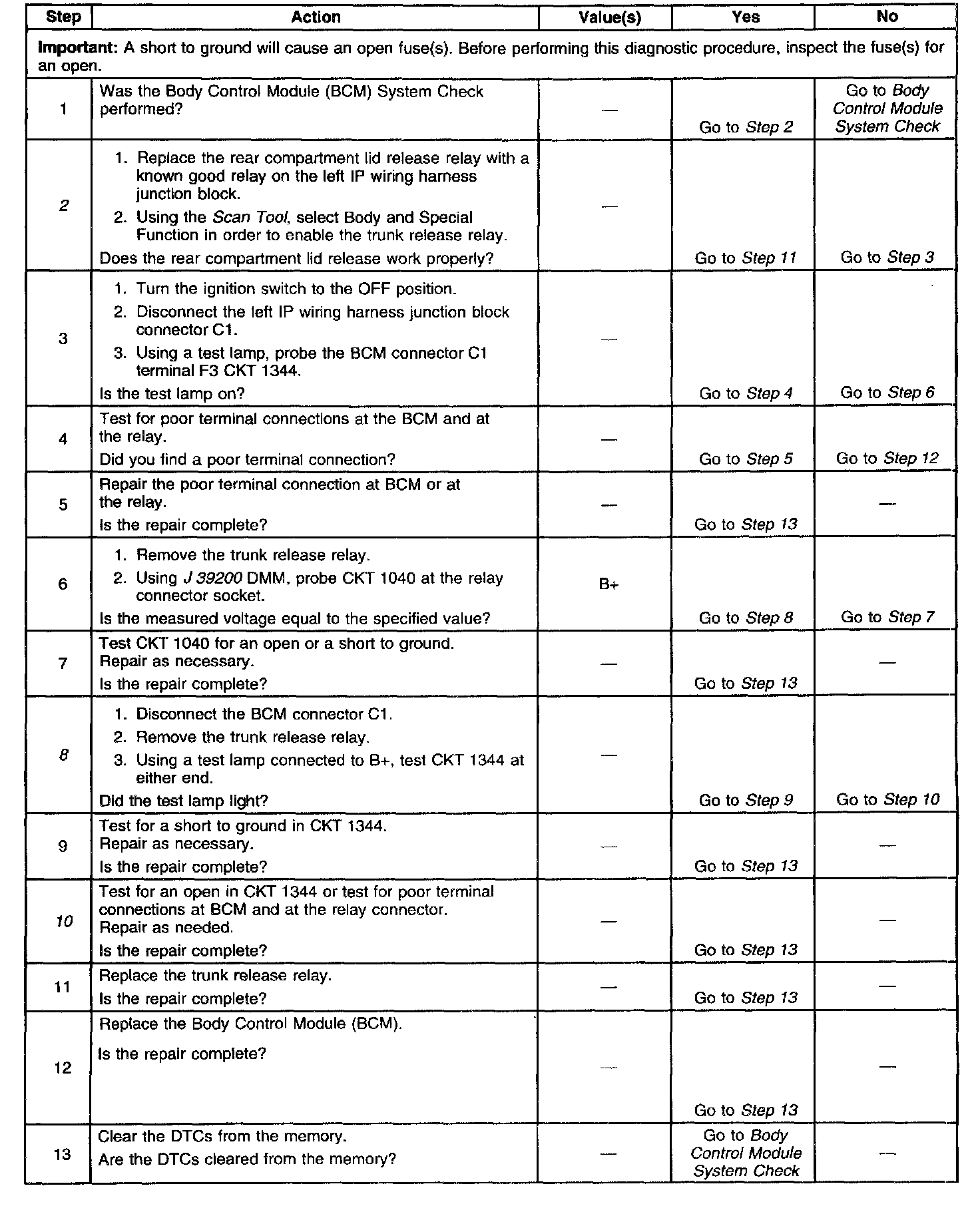

The numbers below refer to the numbers on the diagnostic table.
2. This step determines if the rear compartment lid release relay is operating properly.
8. This step determines a short to ground between the left IP wiring harness Junction block and the Body Control Module (BCM).
10. This step determines an open between the left IP wiring harness junction block and the Body Control Module (BCM).
