B3108

DTC B3108 Transmitter Synchronization Failure:

CIRCUIT DESCRIPTION
The RKE module performs this test any time the module processes a message from a transmitter.

CONDITIONS FOR SETTING THE DTC
The module will set this DTC it the module receives a transmission from an unsynchronized transmitter.

ACTION TAKEN WHEN THE DTC SETS
The module stores a DTC B3108 in the RKE current memory.
No driver warning message will be displayed for this DTC.

CONDITIONS FOR CLEARING THE MIL/DTC
The RKE module will clear this DTC after a valid transmission is received from a transmitter.

DIAGNOSTIC AIDS

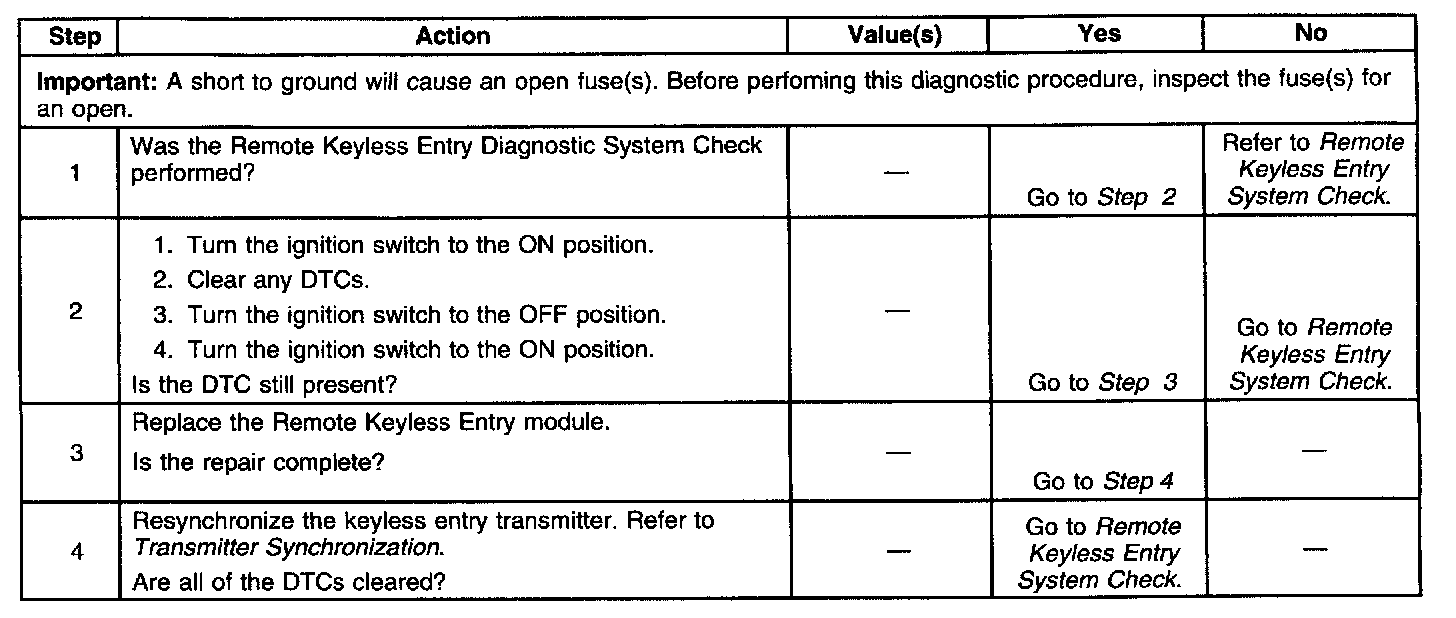

This DTC will stay in memory as current until it receives a valid transmission from the RKE transmitters. The DTC remains in the history until it is cleared. Obtain all of the transmitters from the customer and synchronize the transmitters.
