B1492
DTC B1492 Generator F - Term Low:

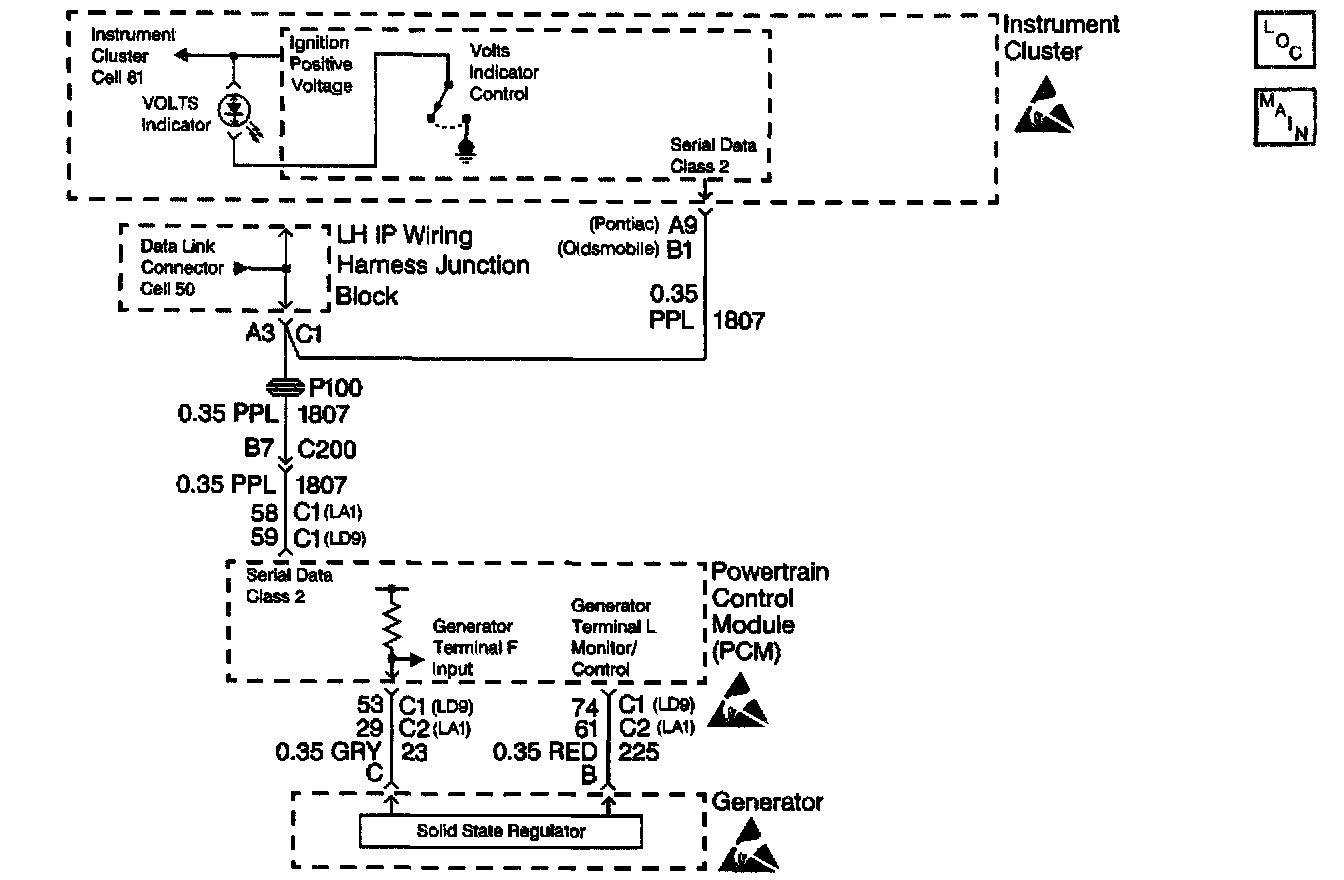

DTC B1492 Generator F - Term Low (Part 1 Of 2):
DTC B1492 Generator F - Term Low (Part 2 Of 2):
CIRCUIT DESCRIPTION
This DTC determines if a fault exists that renders the generator PWM continuously LOW.
CONDITIONS FOR SETTING THE DTC
All of the following conditions must be met:
^ The Powertrain Control Module (PCM) is sending the engine-is-running Class 2 Serial Data message.
^ The Field Terminal Present calibration is enabled in the PCM.
^ The PCM is sending the class 2 serial data message indicating that the generator PWM < 1.96%.
^ The engine is running at no more than 3000 RPM for 30 seconds.
ACTION TAKEN WHEN THE DTC SETS
^ The Instrument Cluster stores DTC B1492 in memory.
^ The volts indicator will illuminate.
CONDITIONS FOR CLEARING THE DTC
^ The instrument cluster goes to sleep. The cluster reinitializes with the fault cleared.
^ All instrument cluster history codes will be cleared after 100 ignition cycles (from OFF to RUN) with no current codes active during the 100 ignition cycles.
^ Use the scan tool.
DIAGNOSTIC AIDS
^ The generator F-terminal is low while the engine is running.
^ When the diagnostics direct you to take electrical measurements at the terminal assignments of the Wiring Harness Junction Blocks, refer to Power Distribution. This measurement is for terminal assignments of the Wiring Harness Junction Blocks. Power and Ground Distribution
If the DTC is a history DTC, the problem may be intermittent. Perform the tests shown while wiggling the wiring and connectors. This may often cause the malfunction to appear.
An intermittent may be caused by any of the following conditions:
^ A poor connection
^ Wire insulation that has been rubbed through
^ A broken wire inside the insulation
Inspect for a poor connection of a damaged harness. Inspect all of the harnesses and connectors for the following conditions:
^ Improper mating
^ Broken locks
^ Improperly formed or damaged terminals
^ Poor terminal-to-wire connections
^ Damaged harnesses
TEST DESCRIPTION
The numbers listed below refer to the numbers on the diagnostic table.
2. This step determines if the 23 circuit has a short to ground condition.
4. This step determines if CKT 23 is open.
6. This step determines if the Powertrain Control Module (PCM) is reading a low generator PWM with the generator connector terminal C and terminal D jumped.
7. This step determines if the Powertrain Control Module (PCM) is reading the proper generator PWM through the scan tool.
