Electrical Diagrams

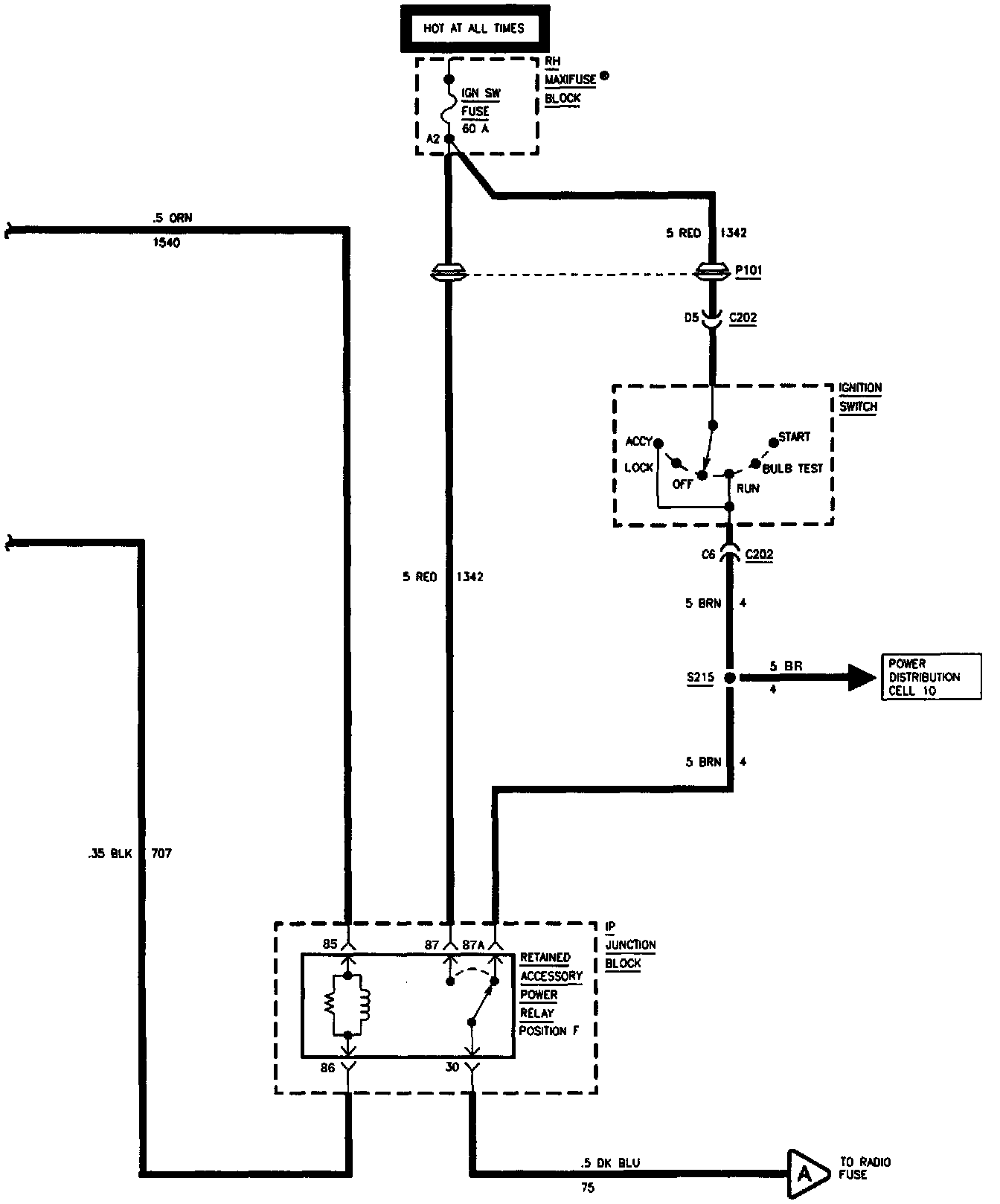

Retained Accessory Power (Part 1 Of 4):

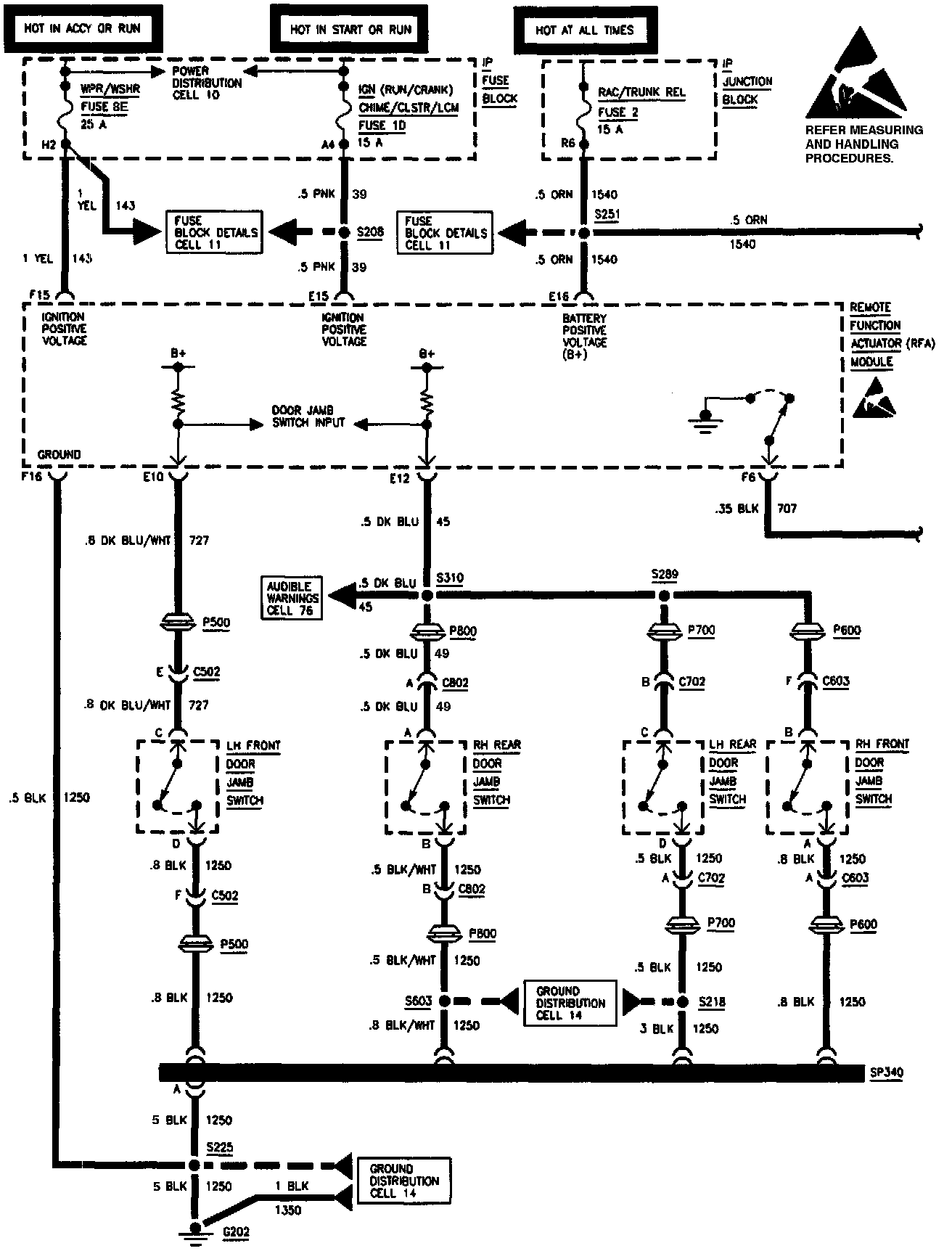

Retained Accessory Power (Part 2 Of 4):

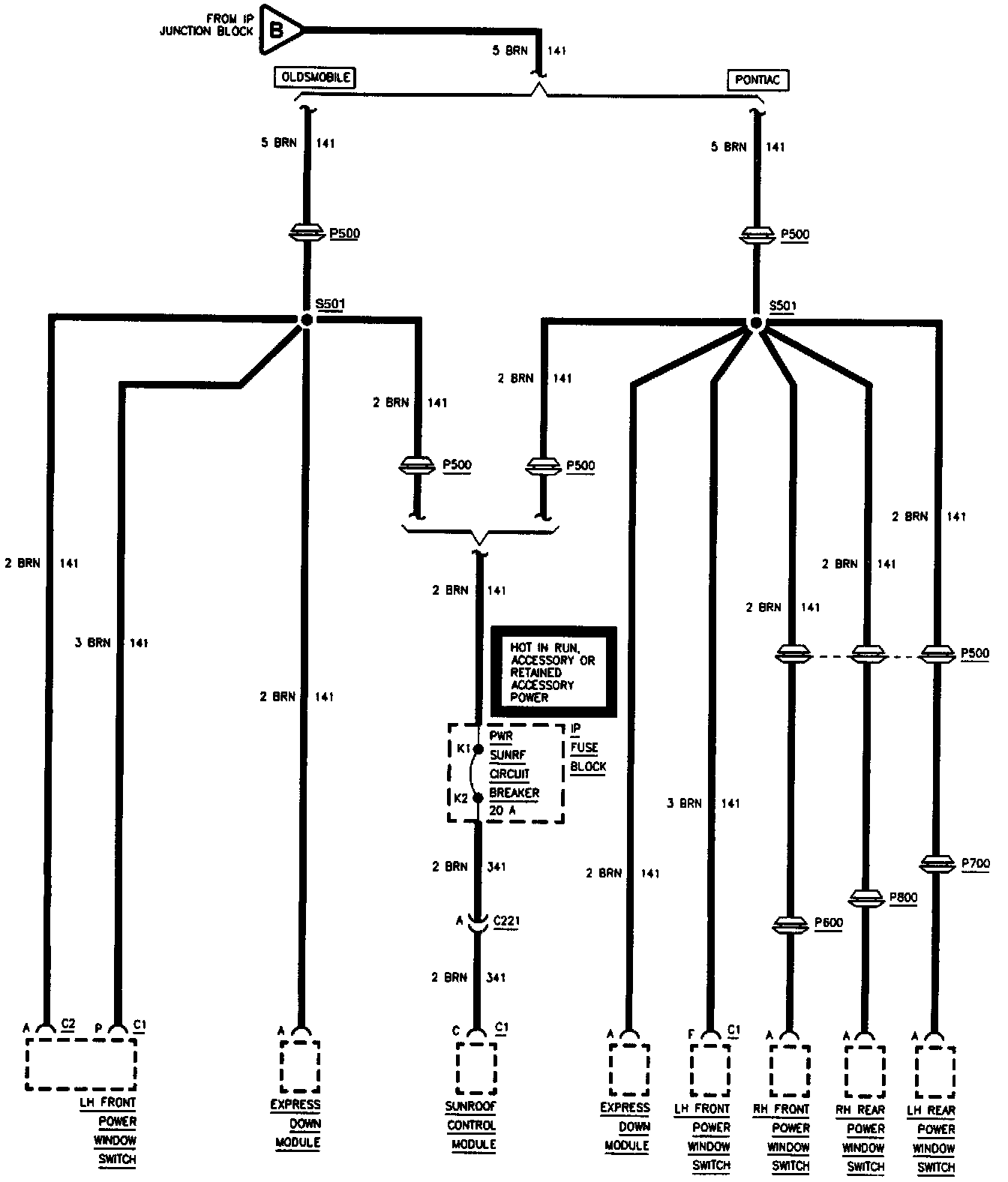

Retained Accessory Power (Part 3 Of 4):




Retained Accessory Power (Part 4 Of 4):
