Oldsmobile
>>
1998
>>
Regency V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
A/T Sensors and TR Switch
A/T Sensors and TR Switch

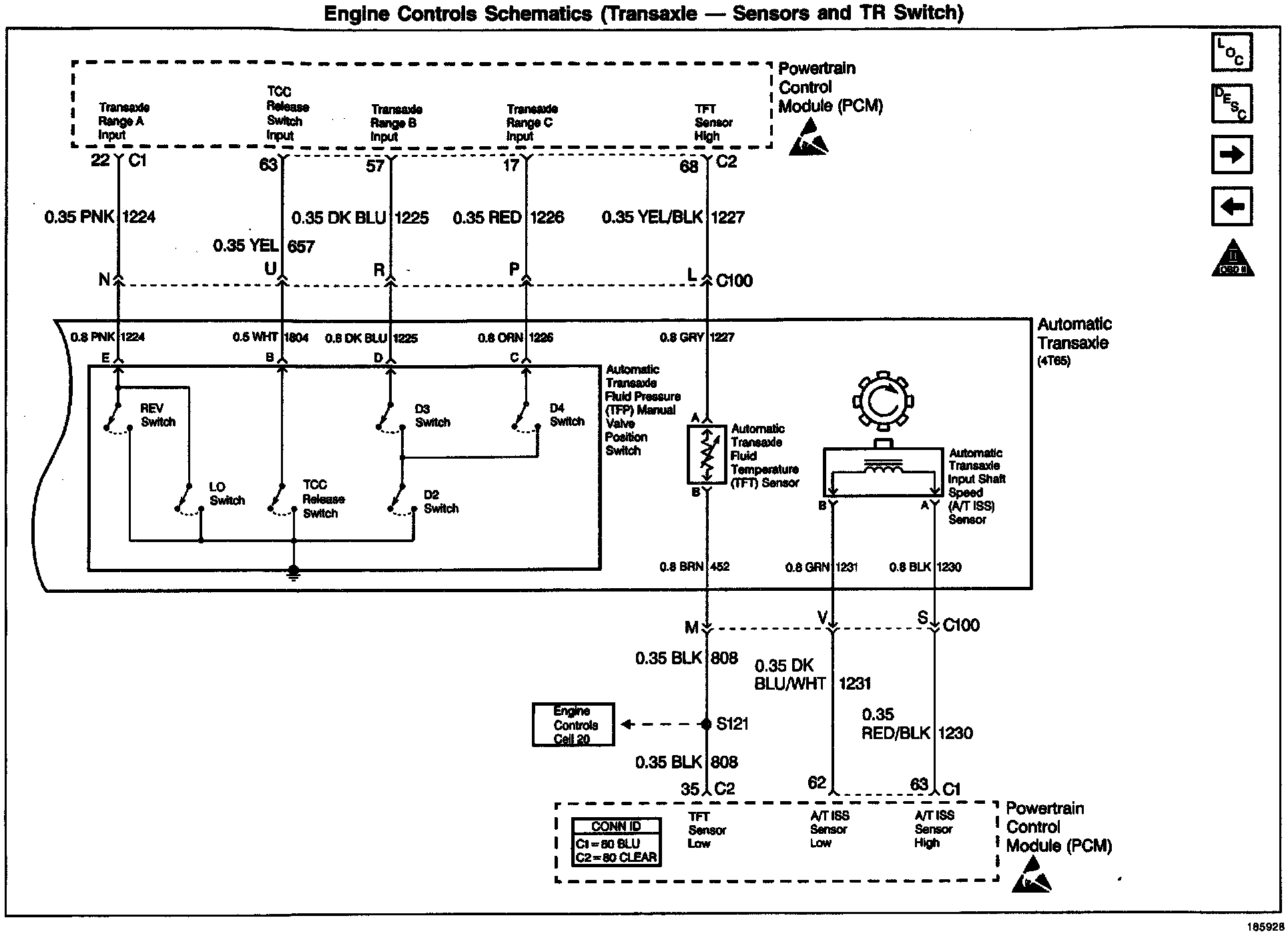

Wiring Diagram:
