Automatic

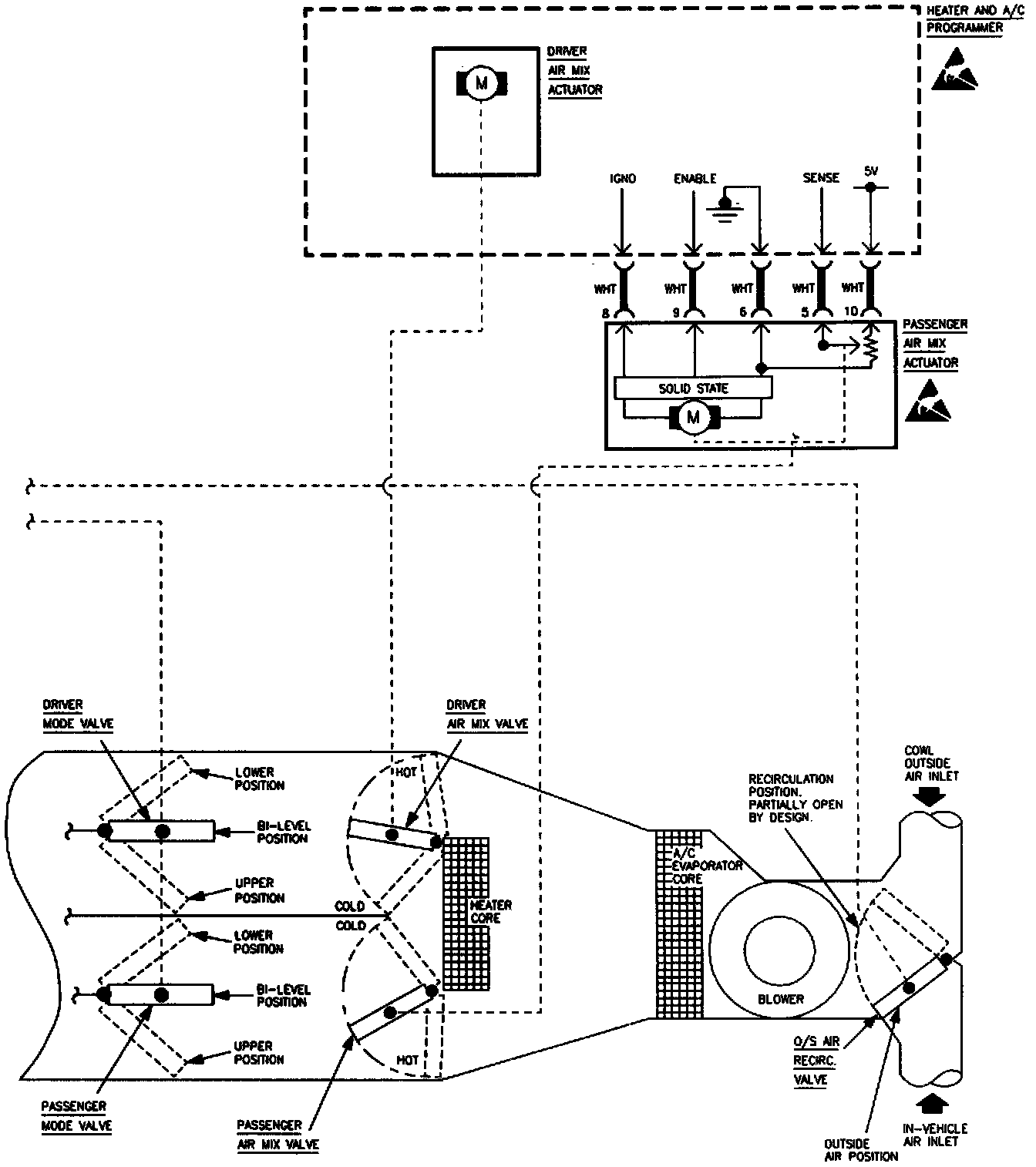

Air Delivery & Temperature Controls: Automatic - Electronic Automatic (C68)/Dual (CJ2) Air Conditioning:

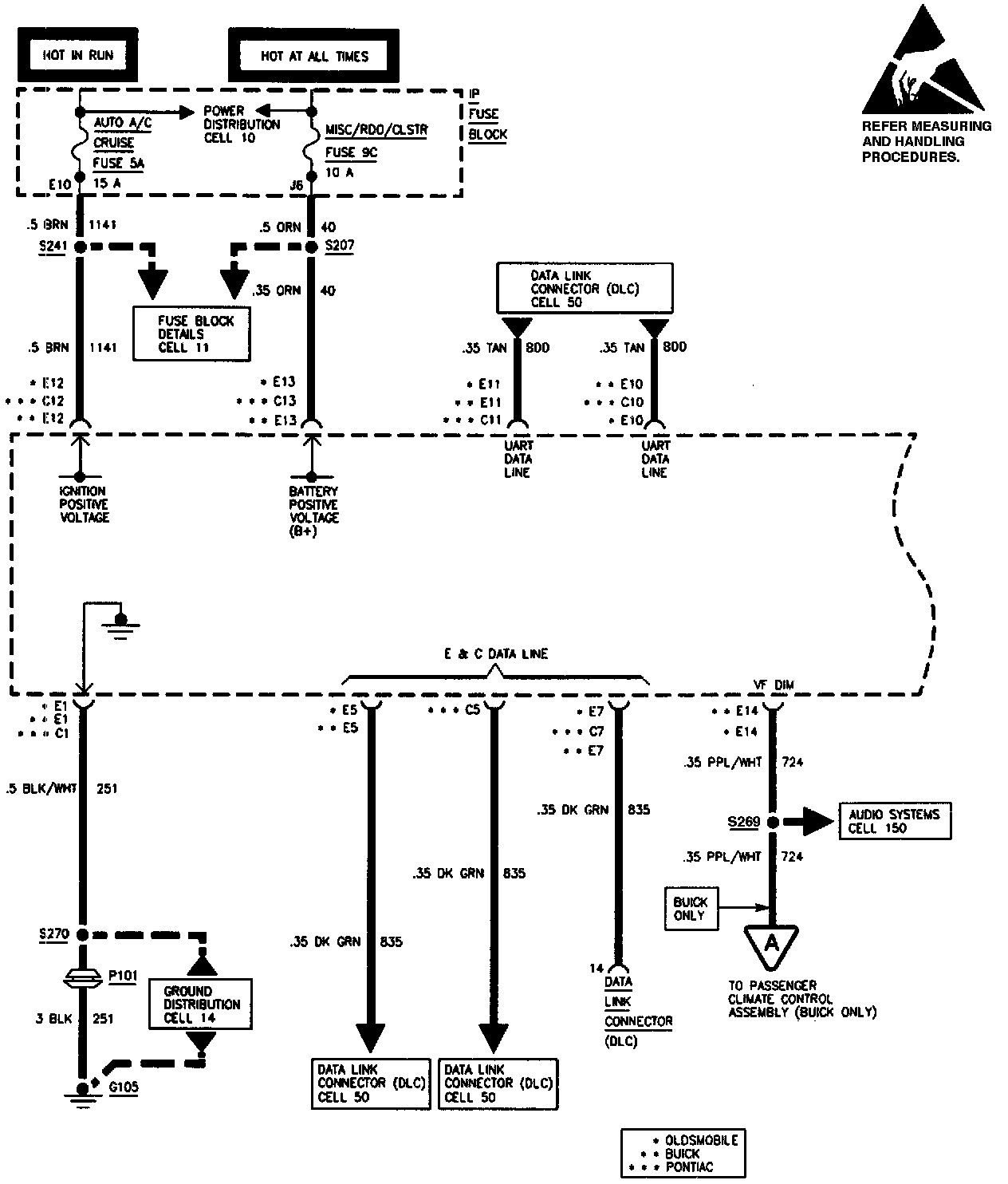

Air Delivery & Temperature Controls: Automatic - Electronic Automatic (C68)/Dual (CJ2) Air Conditioning:




Air Delivery & Temperature Controls: Automatic - Electronic Automatic (C68)/Dual (CJ2) Air Conditioning:

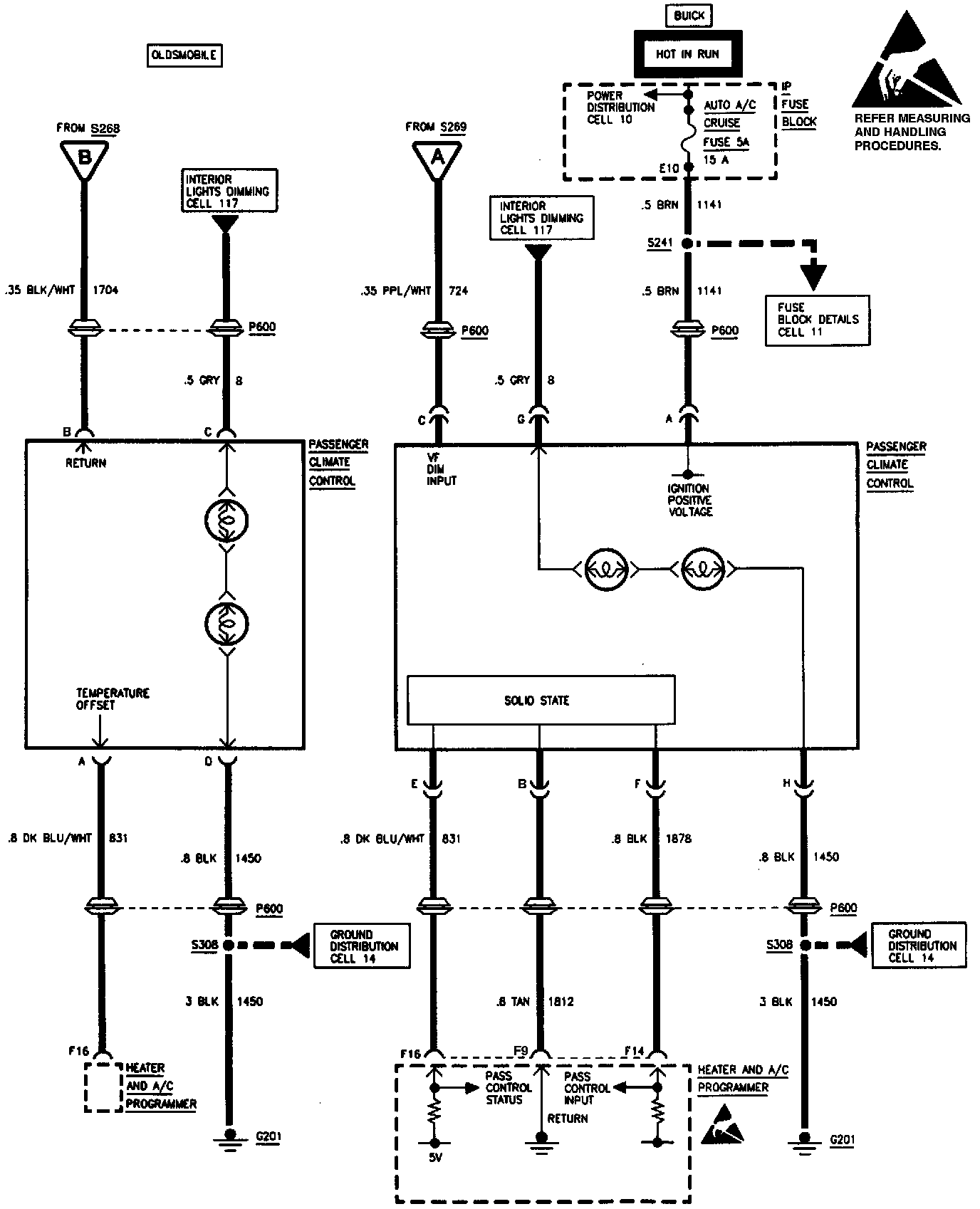

Air Delivery & Temperature Controls: Automatic (CJ2):

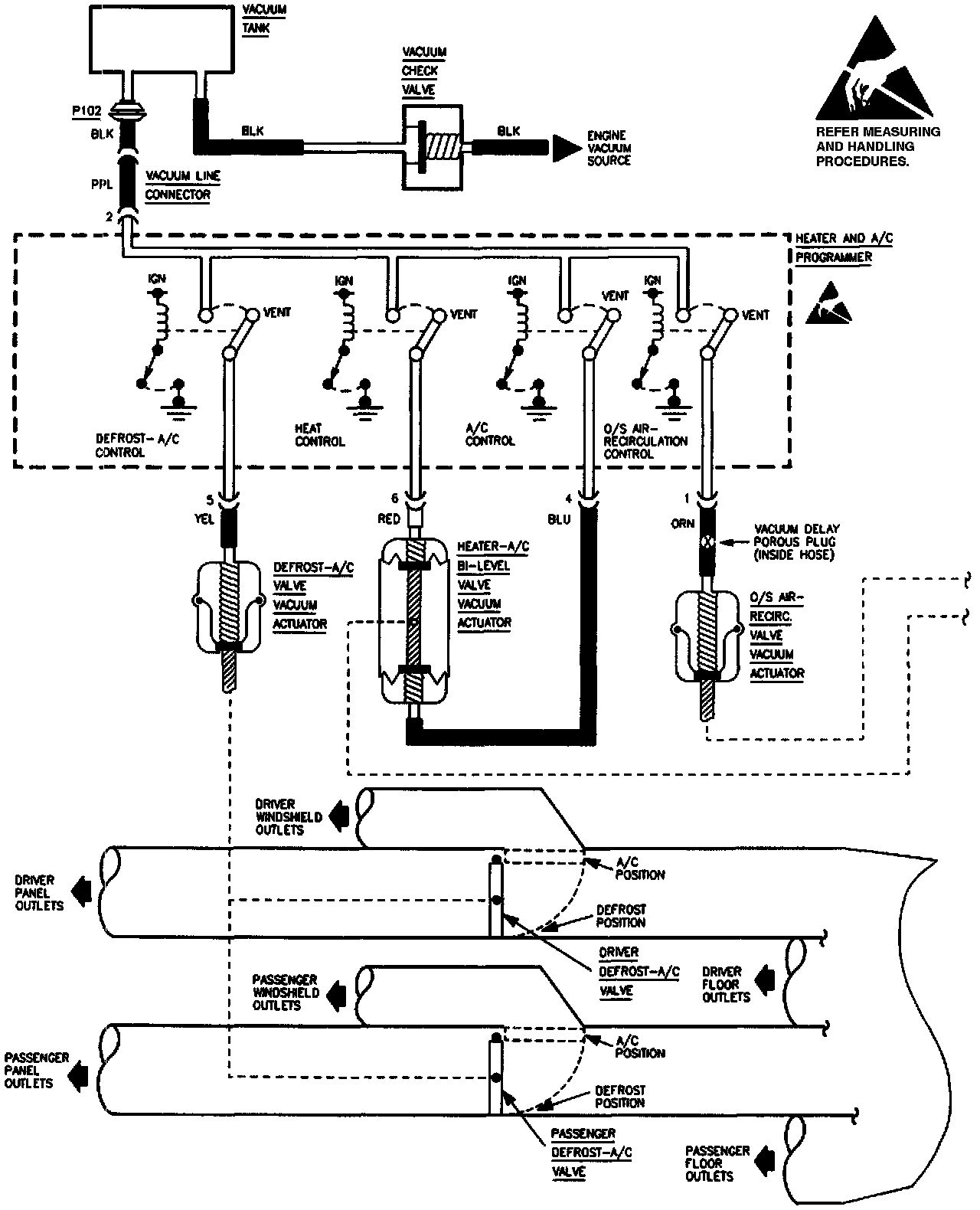

Air Delivery & Temperature Controls: Automatic:




Air Delivery & Temperature Controls: Automatic:
