Park Brake Cable Replacement (Rear)

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.





2. Loosen the adjuster nut (1) to release cable tension.
3. Mark the position of the wheel to the wheel studs in the bearing flange.
4. Remove the tire and the wheel. Mark the position of the brake drum to the wheel studs in the bearing flange.
5. Remove the brake drum. Refer to Brake Drum Replacement.
6. Disconnect the parking brake cable from the parking brake lever. Refer to Park Brake Pedal Replacement
7. Depress the conduit fitting retaining tangs and remove the conduit fitting from the backing plate.





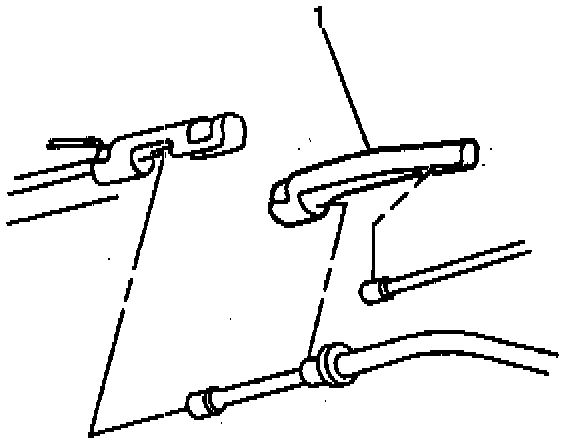

8. Disconnect the cable (1) from the equalizer (2).

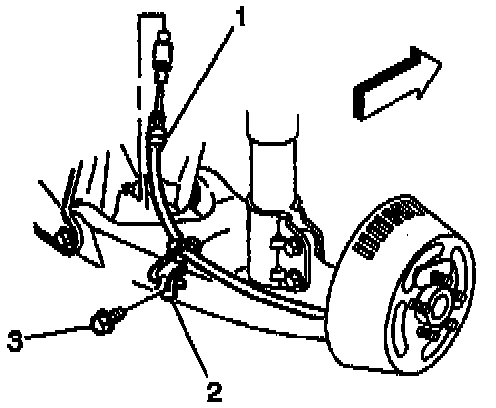

9. Disconnect the cable (3) from the frame retaining hole (1).
10. Disconnect the cable from the rear park brake guide (2).

INSTALLATION PROCEDURE





1. Connect the cable through the rear park brake guide.
2. Install the cable into the retaining hole and snap the cable into place.





3. Connect the cable (1) to the equalizer (2).
4. Install the conduit fitting into the backing plate.
5. Connect the parking brake cable to the parking brake lever. Refer to Park Brake Pedal Replacement.
6. Install the brake drum, the tire and the wheel.
^ Tighten Wheel nuts to 140 Nm (100 ft. lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

7. Adjust the parking brake cable. Refer to Park Brake Cable Inspection (Adjustment).
