Lower Control Arm Bushings Repl. (Control Arm Mounted Bushing)

REMOVAL PROCEDURE
^ Tools Required:
- J 21474-18 Nut
- J 21474-5 Bushing Receiver
- J 21474-13 Bushing Driver
- J 21474-19 Bolt Assembly

1. Remove the control arm from the vehicle. Refer to LOWER CONTROL ARM REPLACEMENT.

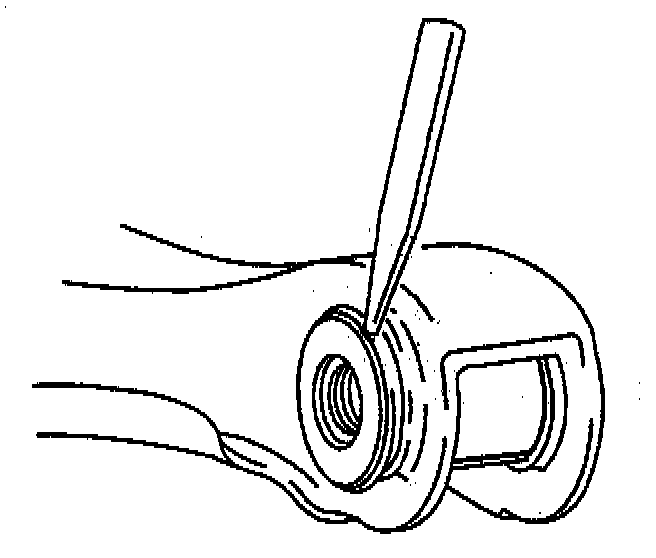

2. Remove the bushing by tapping down the flare with the hammer and punch.

INSTALLATION PROCEDURE

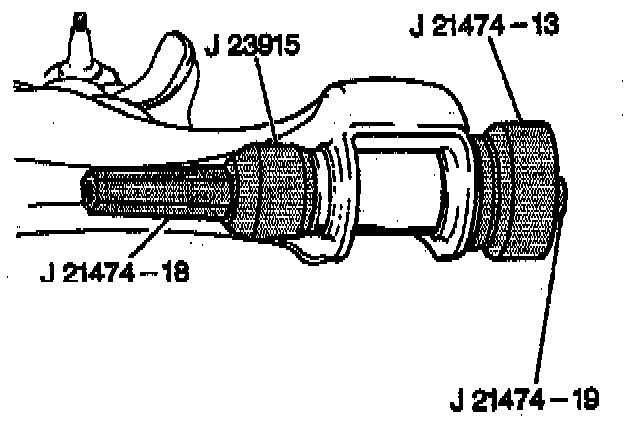

1. Install the bushing into the control arm. Assemble the bushing driver as follows:
1.1. Assemble the bolt, washer and bearing J 21474-19 through bushing driver J 21474-13 with the small end facing the bushing.
1.2. Install the flaring tool with the small flare facing the bushing.
1.3. Assemble nut J 21474-18.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the J 21474-18.

Tighten
Tighten the J 21474-18 until a 45° flare is reached and the bushing is secure in the control arm.

3. Remove the J 21474-13.
4. Install the control arm to the vehicle. Refer to LOWER CONTROL ARM REPLACEMENT.
