Installation Procedure

Description:

Installation Procedure

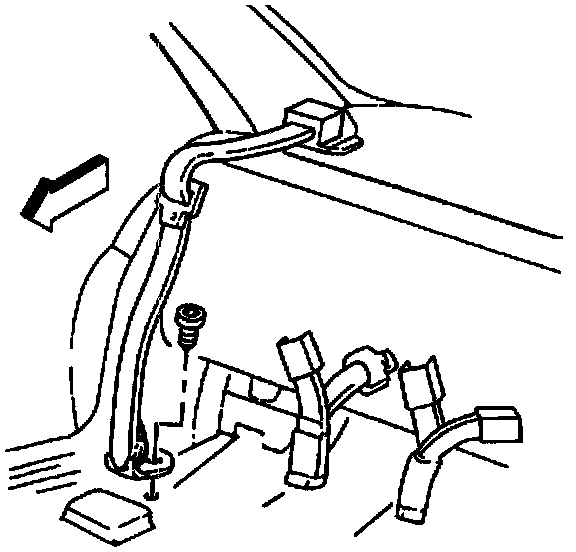

1. Install the belt through the hole in the seat, if on the latch side, or through the strap sewn to the side of the seat, if on the buckle side.
2. Align the tab on the belt with the slot on the load bar assembly.
3. Position the belt and the load bar assembly over the anchor hole in the tunnel.

CAUTION: When reinstalling load bar make sure anchor bolt is through the load bar and center belt holes. Center belt and load bar hole should be correctly lined up using the projection on the belt and notch in load bar for reference. Failure to do so will result in injury in the event of a collision.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the anchor bolt through the load bar assembly and lap belt and secure.
Tighten
Tighten the anchor bolt to 40 N.m (30 lb. ft).
5. Install the cover.
6. Install the screw.
