LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
- Power Distribution Schematics
- Power Distribution Schematics

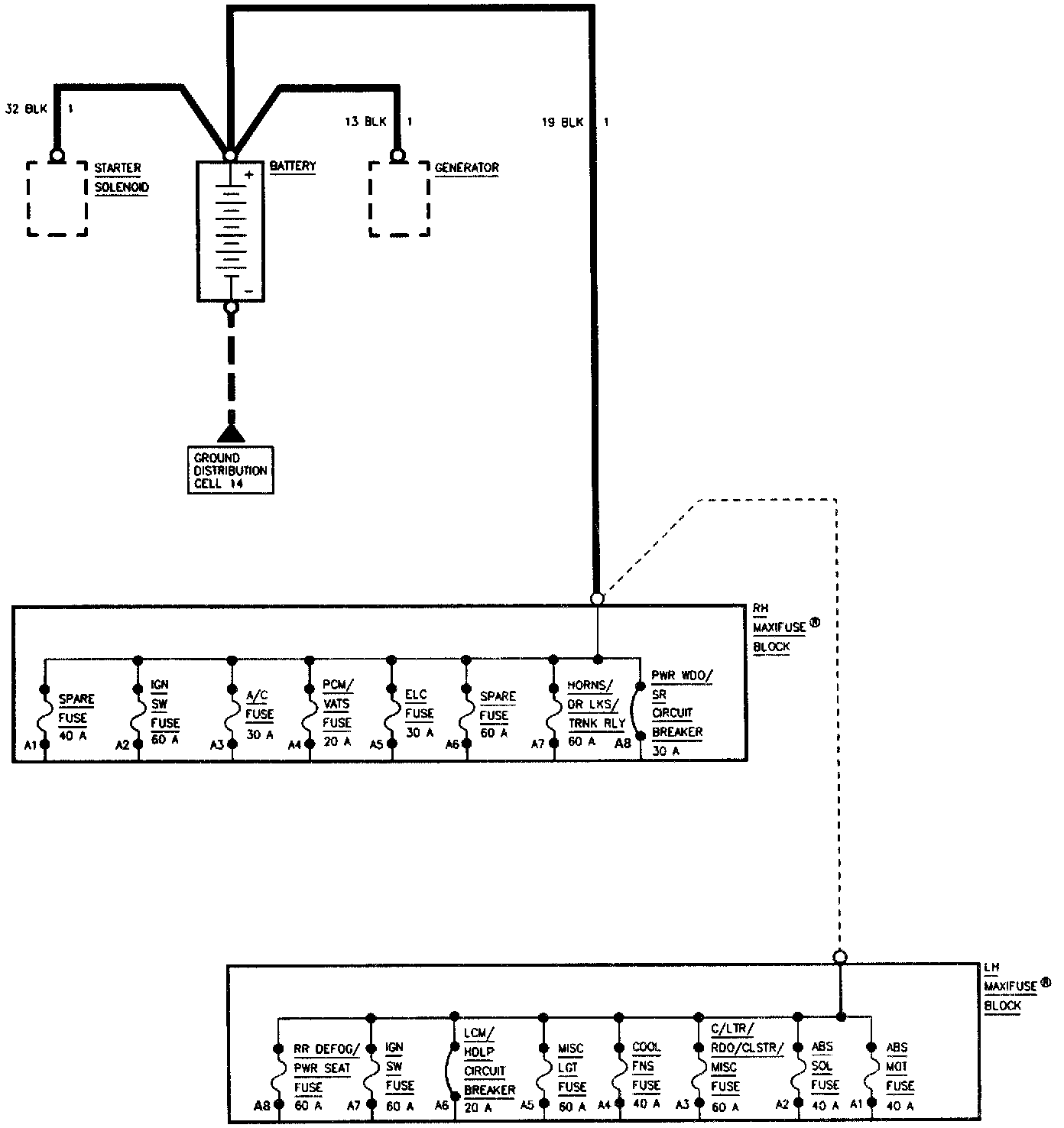

Power Distribution:
